P1.25 Curtain HD LED Video Wall Indoor 320*160mm 600cd/Sqm

P1.25 Curtain HD LED Video Wall Indoor 320*160mm 600cd/Sqm

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Canyi
Certification: CCC FC CE FC CB ROHS
Model Number: Indoor P1.25 full color led module

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs / 1 sqm
Price: Negotiation
Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case
Delivery Time: 7-12 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Brand Name: Indoor P1.25 Full Color LED Display Pitch: 1.25mm
Module Size: 320*160mm Module Resolution: 256x128 Dots
Density: 640000 Dots/sqm Refresh Rate: ≥3840HZ
Drive Type: 1/32 Scan Brightness: 600cd/sqm
Protection Level: IP31 Pixel Configuration: 1R1G1B
High Light:

P1.25 HD LED Video Wall


320*160mm HD LED Video Wall


600cd/sqm led curtain wall display

Product Description

LED p1.25 indoor full color display live broadcast meeting room conference center​




ITEM P1.25 Technical parameter
Module Module Dimension (W)320mm*160mm(H)
Pixel pitch 1.25mm
Pixel Density 640000pixels/M2
Pixel configuration 1R1G1B
LED specification SMD1010
Pixel resolution (W)256*128(H)
resolution 32768dots
Current 3.5-4A
  Drive type 1/32 Scanning
Refresh frequency ≥3840HZ
Brightness 600cd/ M2
Optimum Viewing Distance(m) 2m
Max power consumption 875W/㎡
Ave power consumption 292W/㎡
Working Temperature -20℃ to +60℃
Working Voltage 5V
Display Card DVI Graphics
IP Grade IP31



The introdution of indoor full-color display product:


1. advanced and reasonable system design, stable display effect, convenient installation and maintenance, ultra-high definition and ultra-high resolution.

2. All weather work: vivid color, high refresh frequency, anti-static, dust-proof, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.





1. Video play: it can play video programs in video camera, VCD, DVD and LD; it can also play files of different formats, such as AVI, MOV, MPG, DAT and VOB; it has three display formats, namely, VGA+VIDE, Video and VGA;

2. Information release: it can display a variety of computer information, graphs, two-dimensional animation and three-dimensional animation; it has lots of display methods, such as rolling, lead-in, lead-out, up shift, left shift and circulation; font, character size, letter and speed can be set randomly;

3. Network function With the network interface, it can be connected with the Internet to play information on the Internet at the same time; display screens at different places can be centralizedly controlled through Internet according to customers’ requirements, and “VPM+broadband” may be adopted for remote control.

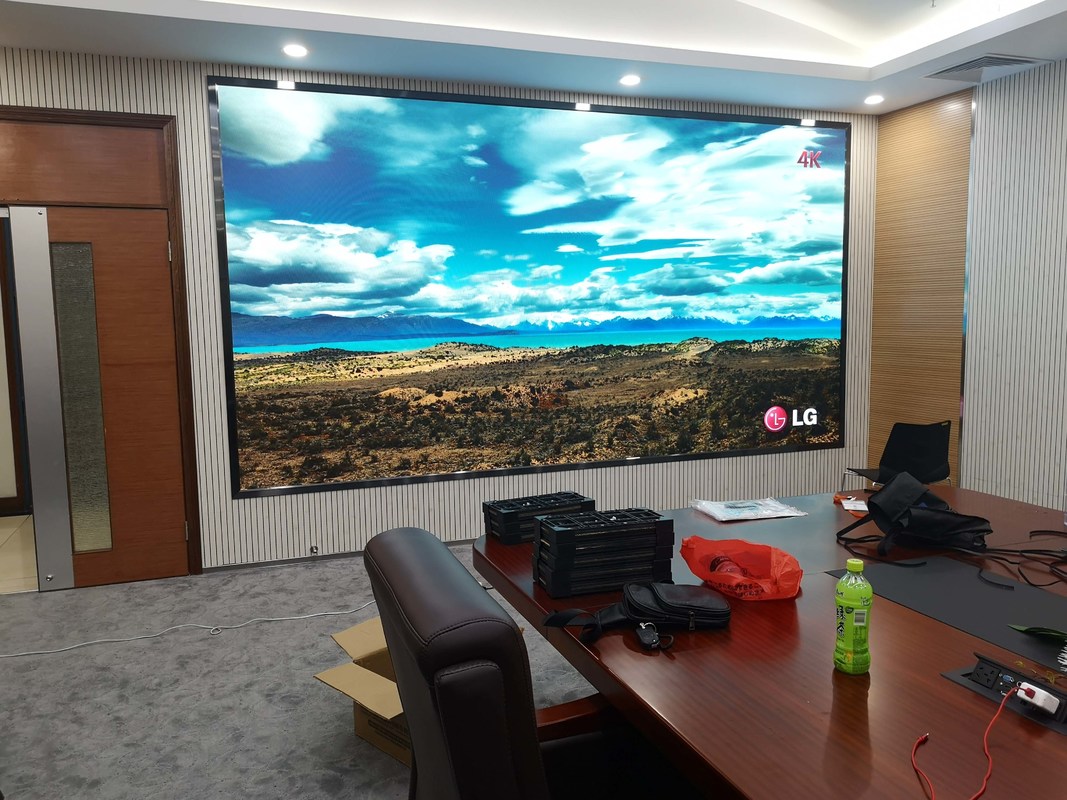

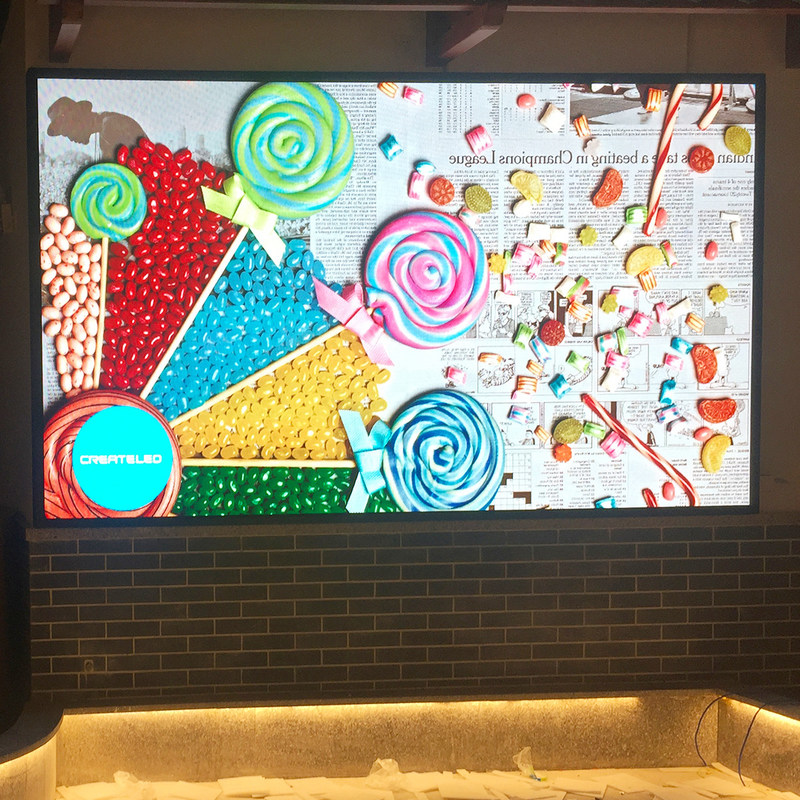

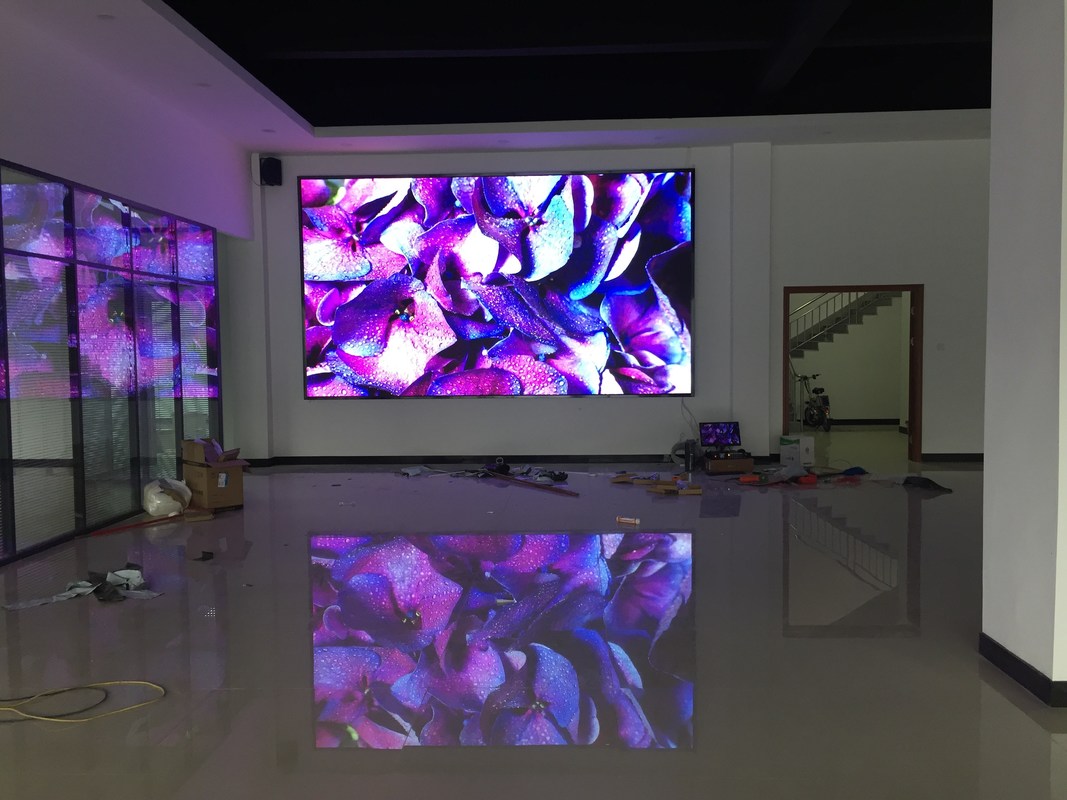

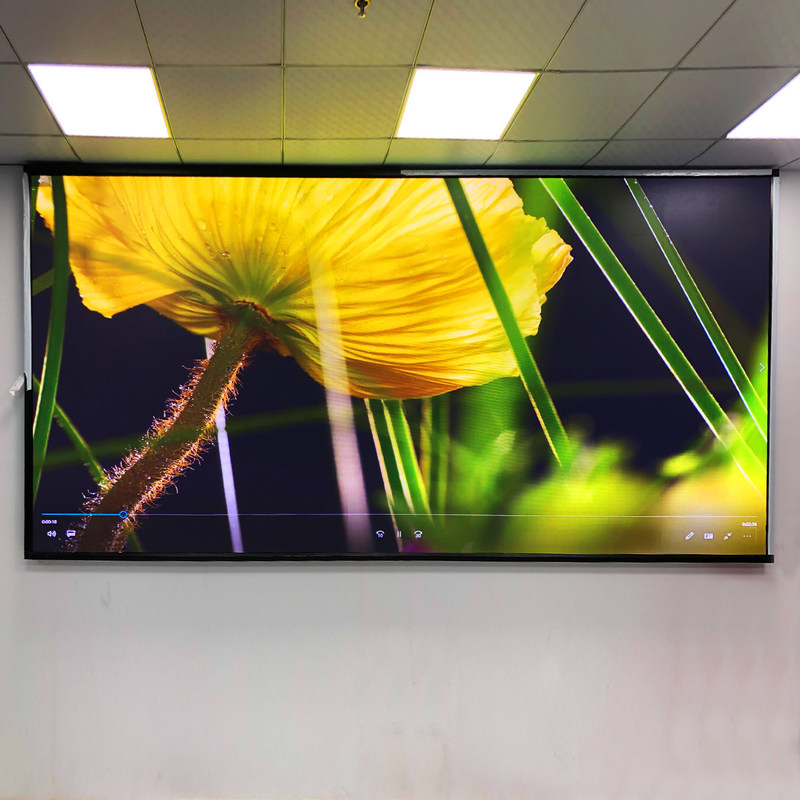

Case Presentation


P1.25 Curtain HD LED Video Wall Indoor 320*160mm 600cd/Sqm 0

Packaging And Shipping

P1.25 Curtain HD LED Video Wall Indoor 320*160mm 600cd/Sqm 1

Wooden case or flight is available, customer can choose according to their requirement.
