Wateproof P4 Outdoor Led Display Screen Square 5500cd/Sqm

Wateproof P4 Outdoor Led Display Screen Square 5500cd/Sqm

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Canyi
Certification: CCC FC CE FC CB ROHS
Model Number: Outdoor P4 full color led module

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs / 1 sqm
Price: Negotiation
Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case
Delivery Time: 7-12 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Brand Name: Outdoor P4 Full Color LED Display Pitch: 4mm
Module Size: 256*128mm Module Resolution: 64x32 Dots
Density: 62500 Dots/sqm Brightness: 5500cd/sqm
Refresh Rate: ≥3840HZ Pixel Configuration: 1R1G1B
Drive Type: 1/8 Scan Protection Level: IP65
High Light:

Wateproof p4 outdoor led display

,

Square p4 outdoor led display

,

p4 outdoor led screen

Product Description

Outdoor school square p4 full color LED display wateproof box large screen





Specification



ITEM P4 Technical parameter
Module Module Dimension (W)256mm*128mm(H)
Pixel pitch 4mm
Pixel Density 62500 dots/
Pixel configuration 1R1G1B
LED specification SMD1921
Pixel resolution (W)64*32(H)
resolution 2048dots
Current 3.5-4A
  Drive type 1/8 Scanning
Refresh frequency ≥3840HZ
Brightness 5500cd/
Optimum Viewing Distance(m) 4~20m
Max power consumption 800W/㎡
Ave power consumption 350W/㎡
Humidity 10%~95%RH
Working Voltage 5V
Display Card DVI Graphics
IP Grade IP65







The introdution of outdoor full-color display product:



1. Advanced and reasonable system design, stable display effect, convenient installation and maintenance, high definition and high resolution.

2. All weather work: rainproof and waterproof, brightness 5500cd/vivid color, high refresh frequency, anti-static, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.



Features:



1. Seamless connection.
2. Special design for the mask to realize higher contrast and larger viewing angle.
3. Signal backup and power backup.
4. Brightness and chromaticity calibration.

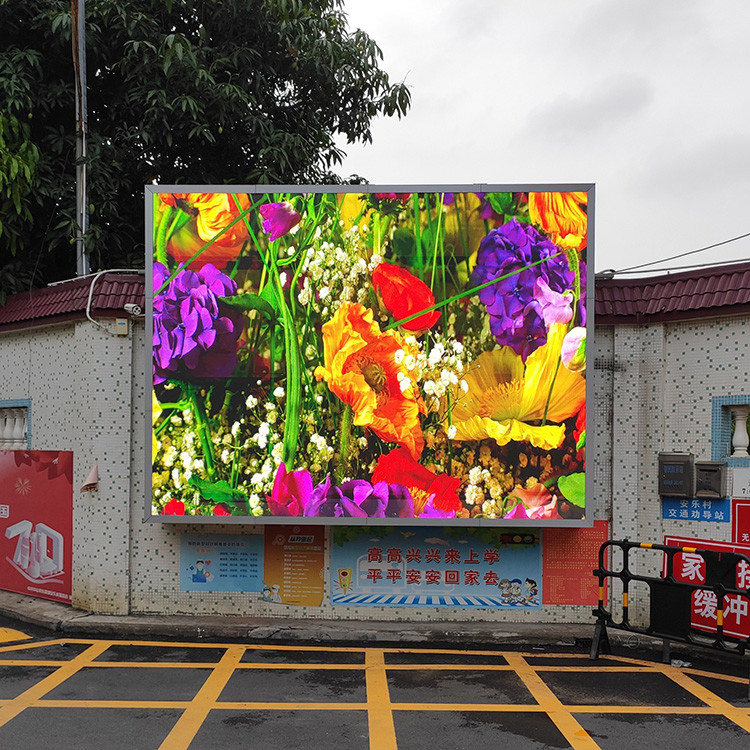

Case Presentation

Wateproof P4 Outdoor Led Display Screen Square 5500cd/Sqm 0



Packaging And Shipping

Wateproof P4 Outdoor Led Display Screen Square 5500cd/Sqm 1

Wooden case or flight is available, customer can choose according to their requirement.
