Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Canyi
Certification: CCC FC CE FC CB ROHS
Model Number: Outdoor P5 full color led module
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs / 1 sqm
Price: Negotiation
Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case
Delivery Time: 7-12 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000 Square Meters per Month
Brand Name: |
Outdoor P5 Full Color LED Display |
Pitch: |
5mm |
Module Size: |
320*160mm |
Module Resolution: |
64x32 Dots |
Brightness: |
5500cd/sqm |
Refresh Rate: |
≥3840HZ |
Density: |
40000 Dots/sqm |
Protection Level: |
IP65 |
Drive Type: |
1/8 Scan |
Pixel Configuration: |
1R1G1B |
Brand Name: |
Outdoor P5 Full Color LED Display |
Pitch: |
5mm |
Module Size: |
320*160mm |
Module Resolution: |
64x32 Dots |
Brightness: |
5500cd/sqm |
Refresh Rate: |
≥3840HZ |
Density: |
40000 Dots/sqm |
Protection Level: |
IP65 |
Drive Type: |
1/8 Scan |
Pixel Configuration: |
1R1G1B |
Outdoor full color p5 LED display floor mounted bus station advertising screen
Specification
ITEM P5 | Technical parameter | |
Module | Module Dimension | (W)320mm*160mm(H) |
Pixel pitch | 5mm | |
Pixel Density | 40000 dots/㎡ | |
Pixel configuration | 1R1G1B | |
LED specification | SMD2727 | |
Pixel resolution | (W)64*32(H) | |
resolution | 2048dots | |
Current | 3.5-4A | |
Drive type | 1/8 Scanning | |
Refresh frequency | ≥3840HZ | |
Brightness | 5500cd/㎡ | |
Optimum Viewing Distance(m) | 5~30m | |
Max power consumption | 800W/㎡ | |
Ave power consumption | 350W/㎡ | |
Humidity | 10%~95%RH | |
Working Voltage | 5V | |
Display Card | DVI Graphics | |
IP Grade | IP65 |
The introdution of outdoor full-color display product:
1. Advanced and reasonable system design, stable display effect, convenient installation and maintenance, high definition and high resolution.
2. All weather work: rainproof and waterproof, brightness 5500cd/㎡, vivid color, high refresh frequency, anti-static, good heat dissipation effect and high cost performance.
3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.
4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.
6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.
7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;
8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;
9. Diversified display modes: support multiple display modes;
10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.
Features:
1. High Definition and can be adjusted, able to show DVD, TV, Dynamic images, VCRs, graphs, letters and animations for 24 hours, synchronized with the computer monitor.
2. With the features of waterproof, sunscreen, anti-static, damp proof, anti-freeze, anti-thundering.
3. With excellent equality and consistency of light, able to solve the problem of mosaic commendably.
4. With clear, exquisite and real display effect.
5. With big viewing angle to the horizontal line and vertical line, able to be watched at every angle, no picture change, no color excursion.
6. The cost of maintenance is low, as every LED lamp can be replaced.

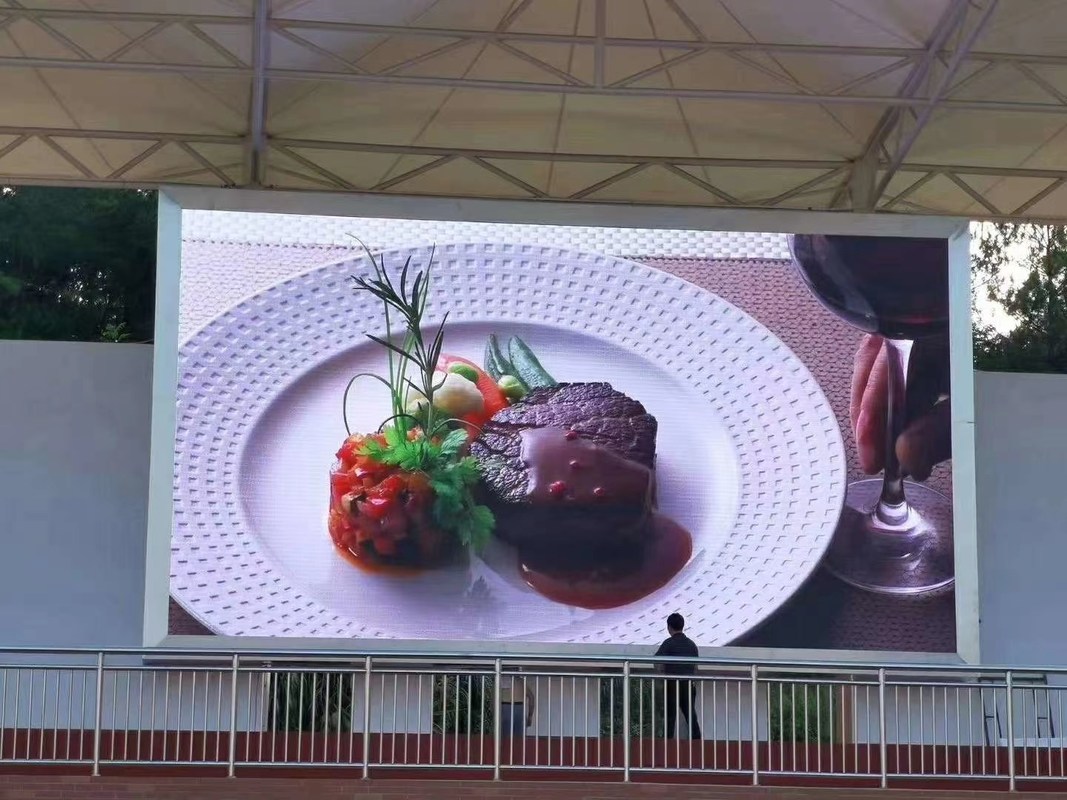

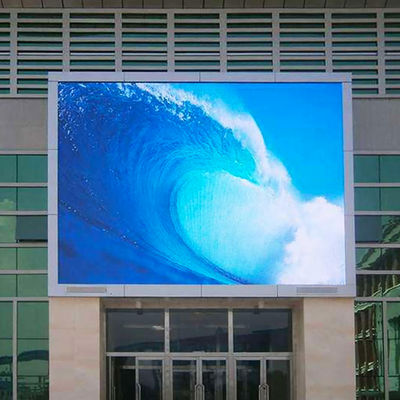

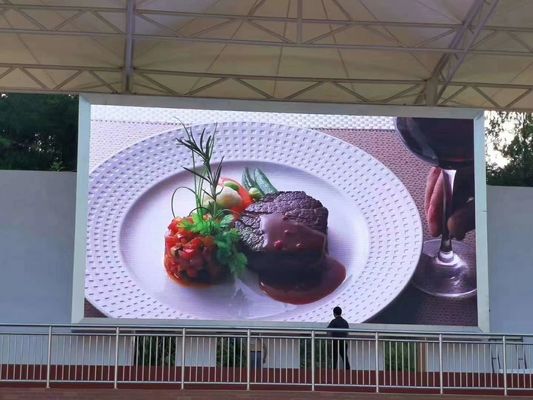

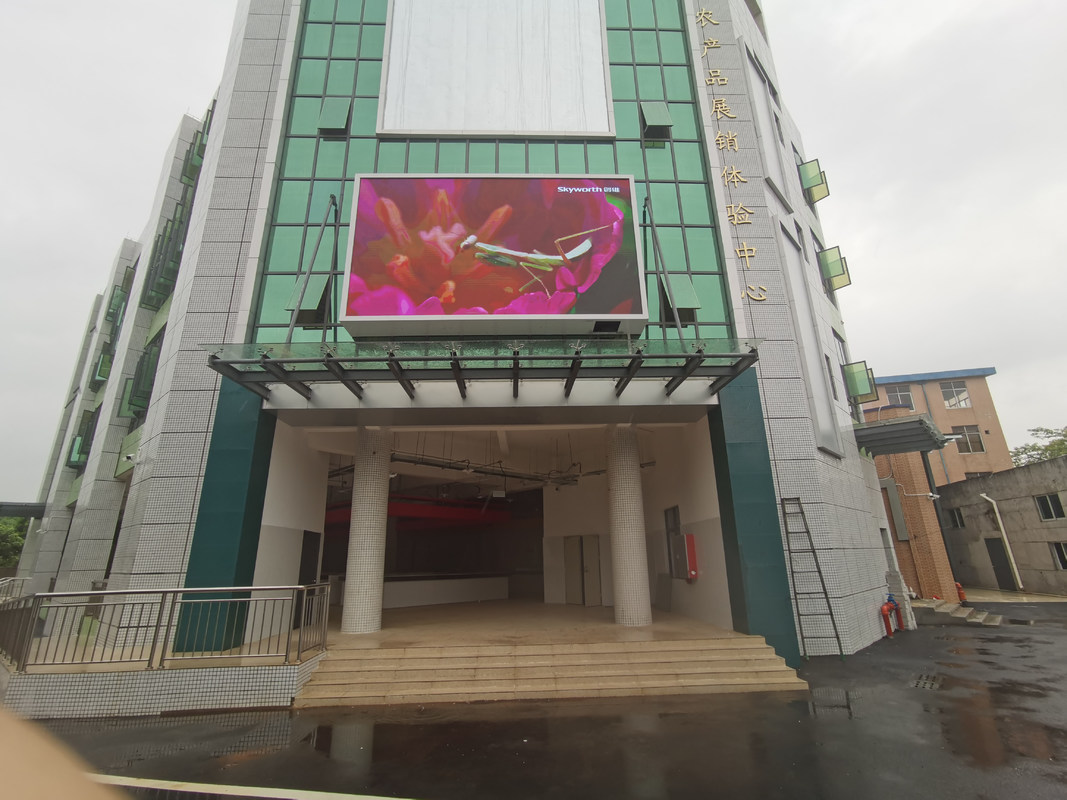

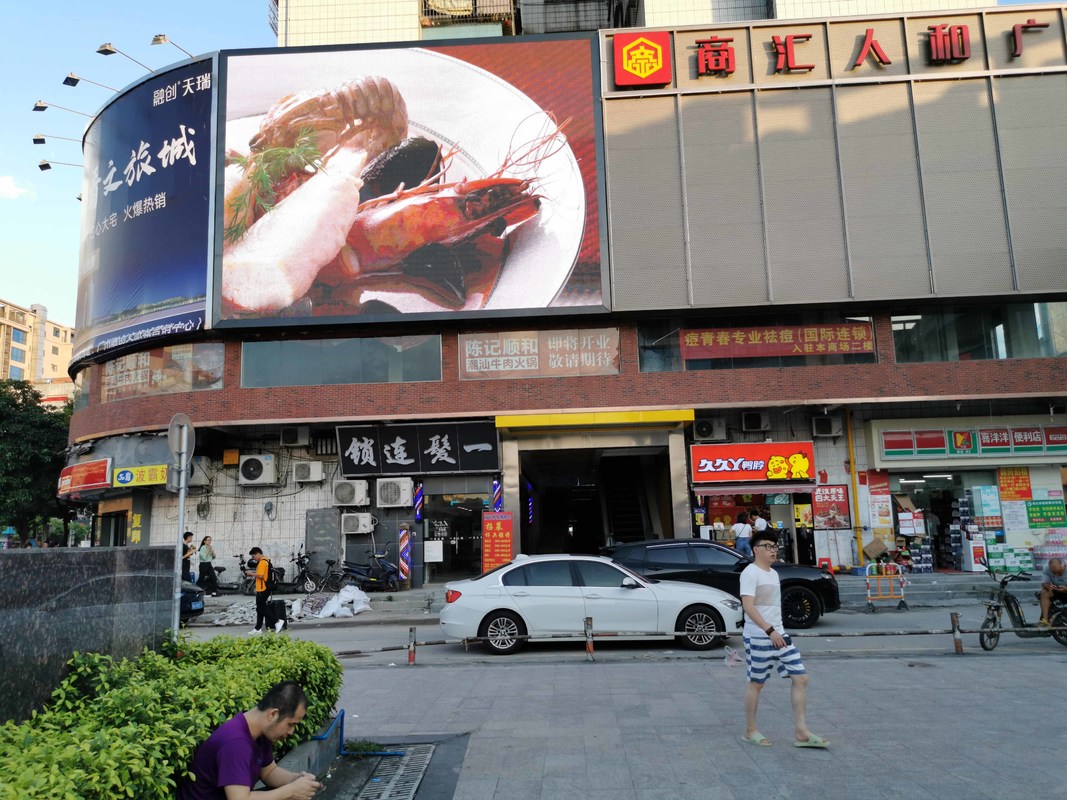

Case Presentation
Packaging And Shipping
Wooden case or flight is available, customer can choose according to their requirement.
FAQ
1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."
2. What is your lead time?
- It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
3. What is your payment term?
- EX factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the shipping method?
- It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
5. How do you make our business long-term and good relationship?
- 1. We keep good quality and competitive price to ensure our customers benefit ;
- 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
