Home > products > Advertising LED Displays > Floor Mounted Advertising LED Displays P8 Bus Stop Screen

Floor Mounted Advertising LED Displays P8 Bus Stop Screen

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: Canyi

Certification: CCC FC CE FC CB ROHS

Model Number: Outdoor P8 full color led module

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs / 1 sqm

Price: Negotiation

Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case

Delivery Time: 7-12 working days after received your payment

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 4000 Square Meters per Month

Get Best Price
Highlight:

Floor Mounted Advertising LED Displays

,

8mm Advertising LED Displays

,

P8 Bus Stop Screen

Brand Name:
Outdoor P8 Full Color LED Display
Pitch:
8mm
Module Size:
256*128mm
Module Resolution:
32x16 Dots
Density:
15625 Dots/sqm
Brightness:
5500cd/sqm
Drive Type:
1/4 Scan
Pixel Configuration:
1R1G1B
Refresh Rate:
≥3840HZ
Protection Level:
IP65
Brand Name:
Outdoor P8 Full Color LED Display
Pitch:
8mm
Module Size:
256*128mm
Module Resolution:
32x16 Dots
Density:
15625 Dots/sqm
Brightness:
5500cd/sqm
Drive Type:
1/4 Scan
Pixel Configuration:
1R1G1B
Refresh Rate:
≥3840HZ
Protection Level:
IP65
Floor Mounted Advertising LED Displays P8 Bus Stop Screen

Outdoor full color p8 LED display floor mounted bus station advertising screen​



Specification



ITEM P8 Technical parameter
Module Module Dimension (W)256mm*128mm(H)
Pixel pitch 8mm
Pixel Density 15625 dots/
Pixel configuration 1R1G1B
LED specification SMD3535
Pixel resolution (W)32*16(H)
resolution 512dots
Current 3.5-4A
  Drive type 1/4 Scanning
Refresh frequency ≥3840HZ
Brightness 5800cd/
Optimum Viewing Distance(m) 8~60m
Max power consumption 800W/㎡
Ave power consumption 350W/㎡
Humidity 10%~95%RH
Working Voltage 5V
Display Card DVI Graphics
IP Grade IP65







The introdution of outdoor full-color display product:



1. Advanced and reasonable system design, stable display effect, convenient installation and maintenance, high definition and high resolution.

2. All weather work: rainproof and waterproof, brightness 5500cd/vivid color, high refresh frequency, anti-static, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.



Features:



1. Easy to install and disassemble.
2. Indication lights to show status of power and signal status.
3. The better quality/price ratio in LED Displays field.
4. Die-casting aluminum, secure and nice in constitution.
5. No fans, mute when operation.
6. Dustproof, IP43.
7. High refresh rate and high gray depth.
8. Completely black LED with high contrast.

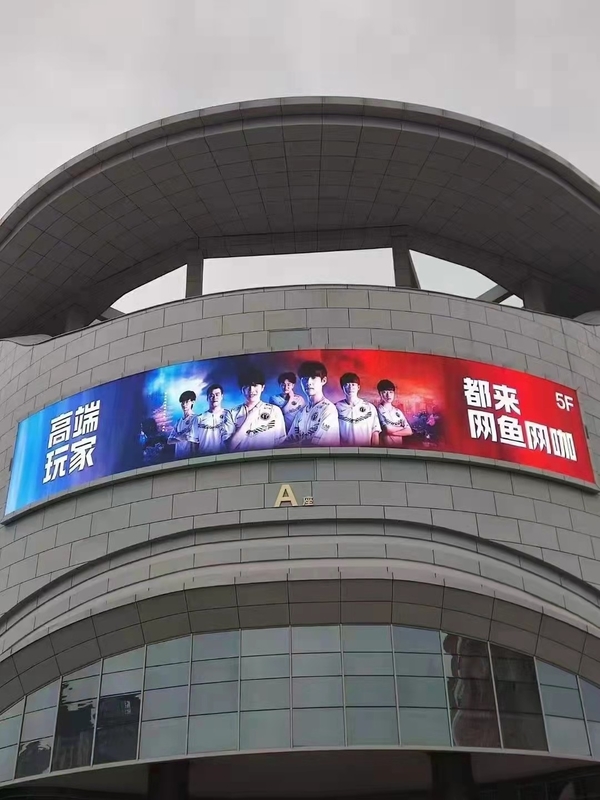

Case Presentation

Floor Mounted Advertising LED Displays P8 Bus Stop Screen 0



Packaging And Shipping

Floor Mounted Advertising LED Displays P8 Bus Stop Screen 1

Wooden case or flight is available, customer can choose according to their requirement.





FAQ



1. How can I get the price?

- We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."



2. What is your lead time?

- It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.



3. What is your payment term?

- EX factory price, 30% deposit, 70%T/T payment before shipment.



4. What is the shipping method?

- It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.



5. How do you make our business long-term and good relationship?

- 1. We keep good quality and competitive price to ensure our customers benefit ;

- 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
