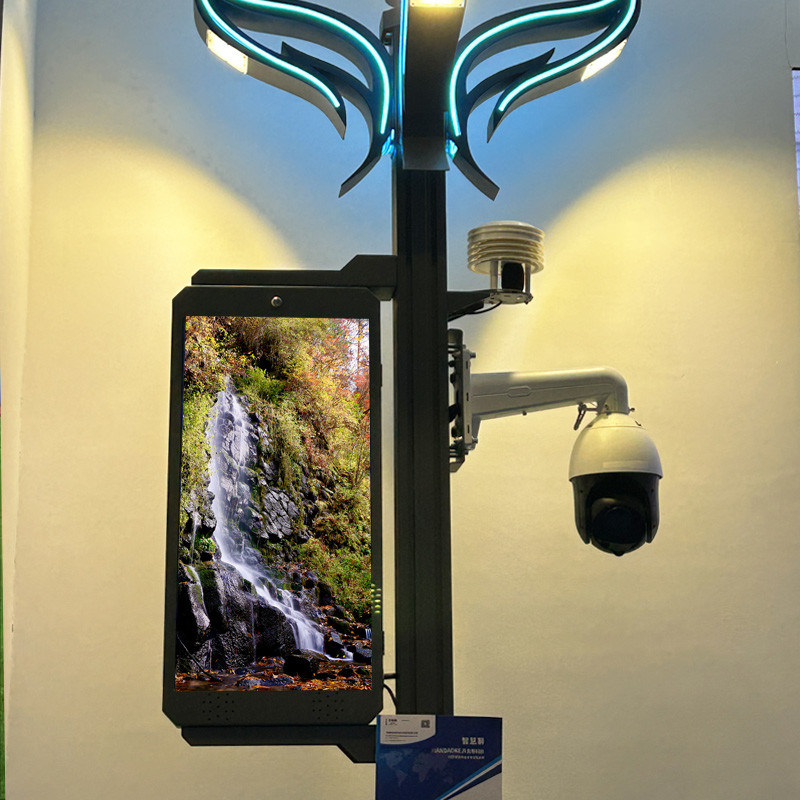

High Brightness Full Color Led Outdoor Display Light Video Pole Double Sides Led Screen
High Brightness Full Color Led Outdoor Display Light Video Pole Double Sides Led Screen
Basic Properties
Place of Origin:
China
Brand Name:
CanYi
Certification:
CB ROHS
Model Number:
CanYi-P3
Trading Properties
Minimum Order Quantity:
1 pcs /1 sqm
Price:
Negotiation
Payment Terms:
T/T Western Union, MoneyGram
Supply Ability:
4000 Square Meters per Month
Product Summary
Waterproof high brightness Full Color Led Outdoor Display Light video Pole Double Sides Led Screen 1. Outdoor LED Light Pole LED Screen Displays are a type of digital signage that combines an LED screen with an integrated lighting system and is specifically designed for outdoor use. They are usually mounted on poles or columns in public spaces such as streets, parks, and parking lots, and provide both advertising and lighting functions. 2.Outdoor LED Light Pole LED Screen
Product Custom Attributes
Highlight
Full Color Led Outdoor Display
,Double Sides Led Outdoor Display
,Double Sides Light Pole LED Display
LED Configuration:
SMD1515/2525
Pixel Spacing:
2.5/3/4/5/6mm
Module Size:
320*160mm
IP Rating:
160°/ 140°(HM)
Gray Scale/bit:
16 Bit
Refresh Frequency/Hz:
1920~3840 Hz
Operating Power:
AC 96~242V 50/60Hz
Operating Temperature:
-40"C ~+60"C
Operating Humidity:
10~90%RH
Product Description
Detailed Specifications & Features
Waterproof high brightness Full Color Led Outdoor Display Light video Pole Double Sides Led Screen
1.
| Pixel spacing | 2.5mm | 3mm | 4mm | 5mm | 6mm |
| LED Configuration | SMD1515 | SMD1515 | SMD2525 | SMD2525 | SMD2525 |
| PixelDensity/sqm | 160000 dots | 111111dots | 62500dots | 40000dots | 27777dots |
| Module Size/mm | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Cabinet Size | 640 (w) x960(h) | 640 (w) x960(h) | 640 (w) x960(h) | 640 (w) x960(h) | 640 (w) x960(h) |
| Cabinet Size | 640(w)x1120(h) | 640(w)x1120(h) | 640(w)x1120(h) | 640(w)x1120(h) | 640(w)x1120(h) |
| Cabinet Size | 640(w) x1280(h) |
640(w) x1280(h) |
640(w) x1280(h) |
640(w) x1280(h) |
640(w) x1280(h) |
| Cabinet Size | 640 (w)x1440(h) | 640 (w)x1440(h) | 640 (w)x1440(h) | 640 (w)x1440(h) | 640 (w)x1440(h) |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Brightness /sqm | 600-1200 nits | 4000-8000 nits | 4000-8000 nits | 4000-8000 nits | 4000-8000 nits |
| View Angle° | 160°/ 140 (HM) |
160°/ 140 (HM) |
160°/ 140 (HM) |
160°/ 140 (HM) |
160°/ 140 (HM) |
| Gray Scale/bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Max.Power ConsumptionW | 860 W/sqm | 786 W/sqm | 840 W/sqm | 750 W/sqm | 790 W/sqm |
| Ave.PowerConsumptionW | 260W/sqm | 235W/sqm | 252W/sqm | 252W/sqm | 238 W/sqm |
| RefreshFrequency/Hz | 1920~3840Hz | 1920~3840Hz | 1920~3840Hz | 1920~3840Hz | 1920~3840Hz |
| OperatingTemperature | -40"C~+60"C | ||||
| Operating power | AC96~242V 50/60Hz | ||||
| OperatingHumidity | 10~90%RH | ||||
| Operating Life | 100000Hours | ||||
