P4 Indoor Full Color LED Display Seamless Led Screen Hospital Bulletin Board

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: Canyi

Certification: CCC FC CE FC CB ROHS

Model Number: Indoor P4 full color led module

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs / 1 sqm

Price: Negotiation

Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case

Delivery Time: 7-12 working days after received your payment

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5000 Square Meters per Month

Get Best Price
Highlight:

Hospital Indoor Full Color LED Display

,

Seamless Indoor Full Color LED Display

,

P5 Full Color LED Display

Brand Name:
Indoor Full Color LED Display
Best View Distance:
≥4m
Module Size:
256*128mm
Module Resolution:
64x32 Dots
Refresh Rate:
≥1920HZ
Density:
2048 Dots/sqm
Brightness:
550cd/sqm
Pixel Configuration:
1R1G1B
Brand Name:
Indoor Full Color LED Display
Best View Distance:
≥4m
Module Size:
256*128mm
Module Resolution:
64x32 Dots
Refresh Rate:
≥1920HZ
Density:
2048 Dots/sqm
Brightness:
550cd/sqm
Pixel Configuration:
1R1G1B
P4 Indoor Full Color LED Display Seamless Led Screen Hospital Bulletin Board

LED display P4 indoor full color seamless led screen hospital bulletin board



Specification



Indoor full color LED display
Pitch/mm P3 P4 P4
Module size/mm 240*120 240*120 256*128
Density of pixel/(dots/m2) 111,111 62,500 62,500
Pixel composition 1R1G1B 1R1G1B 1R1G1B
Led encapsulation SMD2020 SMD2020 SMD2020
Resolution of module 80*40 60*30 64*32
Optimum viewing distance 3-50m 4-50m 4-50m
View angle / ° 140H,120V 140H,120V 140H,120V
Size of cabinet/mm 480*480 480x480 512*512
Weight of cabinet/kg 8 8 8
Refresh rate Hz/S ≥1920 ≥1920 ≥1920
Luminance of white balance 550nits 550nits 550nits
Operation of Environmental Temperature/℃ Below 50 -above 10
Working voltage 110-220 VAC/+/- 10%
Grey scale/color displaying colors≥16.7M(synchronized)
Brightness adjustment 256 levels of each color(manually),100 levels of each color(automatically)
Input signal USB,VGA,DVI,HDMI,Audio
Control system (sending card,receiving cards and Hubs)
Average of non-failure life >50,00h
Life span >100,000h
Functionless dot rate <0.0001







The introdution of indoor full-color display product:



1. advanced and reasonable system design, stable display effect, convenient installation and maintenance, ultra-high definition and ultra-high resolution.

2. All weather work: vivid color, high refresh frequency, anti-static, dust-proof, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.





Features:



1. Easy to install and disassemble.
2. Indication lights to show status of power and signal status
3. The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led lamp
7. Anti-interference: special anti electronic-magnetic interference function
8. High precision: seamless splicing though CNC machine
9. Seamless connection:The aluminum die-casting technology,togrther with the high precision CNC procession,
makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
10. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.

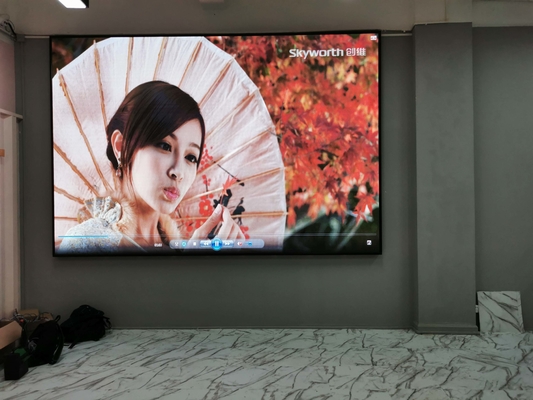

Case Presentation



P4 Indoor Full Color LED Display Seamless Led Screen Hospital Bulletin Board 0



Packaging And Shipping

P4 Indoor Full Color LED Display Seamless Led Screen Hospital Bulletin Board 1

Wooden case or flight is available, customer can choose according to their requirement.
