1R1G1B Indoor LED Video Wall Small Spacing P1.875 LED Display Bank Exchange Rate Announcement

Product Details

Place of Origin: Guangdong, China (Mainland)

Certification: CCC FC CE FC CB ROHS

Model Number: Indoor P1.875 full color led module

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs / 1 sqm

Price: Negotiation

Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case

Delivery Time: 7-12 working days after received your payment

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5000 Square Meters per Month

Get Best Price
Highlight:

1R1G1B Indoor LED Video Wall

,

P1.875 Indoor LED Video Wall

,

P1.875 indoor led display

Brand Name:
Indoor P1.875 Full Color LED Display
Pitch:
1.875mm
Density:
284444 Dots/sqm
Module Size:
240*240mm
Module Resolution:
128x128 Dots
Refresh Rate:
≥3840HZ
Brightness:
550cd/sqm
Pixel Configuration:
1R1G1B
Drive Type:
1/30 Scan
Protection Level:
IP31
Brand Name:
Indoor P1.875 Full Color LED Display
Pitch:
1.875mm
Density:
284444 Dots/sqm
Module Size:
240*240mm
Module Resolution:
128x128 Dots
Refresh Rate:
≥3840HZ
Brightness:
550cd/sqm
Pixel Configuration:
1R1G1B
Drive Type:
1/30 Scan
Protection Level:
IP31
1R1G1B Indoor LED Video Wall Small Spacing P1.875 LED Display Bank Exchange Rate Announcement

Indoor full color small spacing p1.875 LED display bank exchange rate announcement



Specification



ITEM P1.875 Technical parameter
Module Module Dimension (W)240mm*240mm(H)
Pixel pitch 1.875mm
Pixel Density 284444pixels/M2
Pixel configuration 1R1G1B
LED specification SMD1515
Pixel resolution (W)128*128(H)
resolution 16384dots
Current 3.5-4A
  Drive type 1/30Scanning
Refresh frequency ≥3840HZ
Brightness 550cd/ M2
Optimum Viewing Distance(m) 2m
Max power consumption 875W/㎡
Ave power consumption 292W/㎡
Working Temperature -20℃ to +60℃
Working Voltage 5V
Display Card DVI Graphics
IP Grade IP31





The introdution of indoor full-color display product:



1. advanced and reasonable system design, stable display effect, convenient installation and maintenance, ultra-high definition and ultra-high resolution.

2. All weather work: vivid color, high refresh frequency, anti-static, dust-proof, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.



Features:



1. Easy to install and disassemble.
2. Indication lights to show status of power and signal status
3. The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led lamp
7. Anti-interference: special anti electronic-magnetic interference function
8. High precision: seamless splicing though CNC machine
9. Seamless connection:The aluminum die-casting technology,togrther with the high precision CNC procession,
makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
10. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.

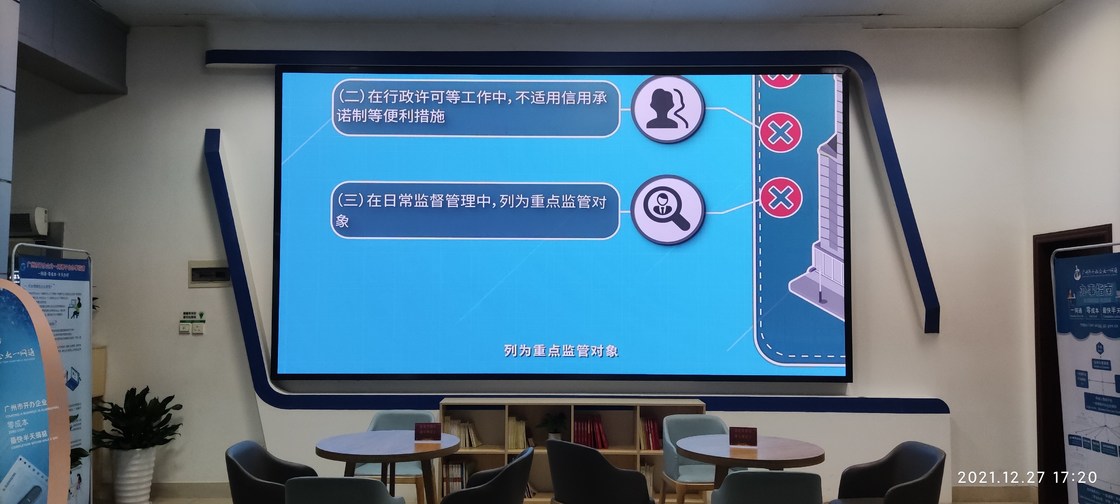

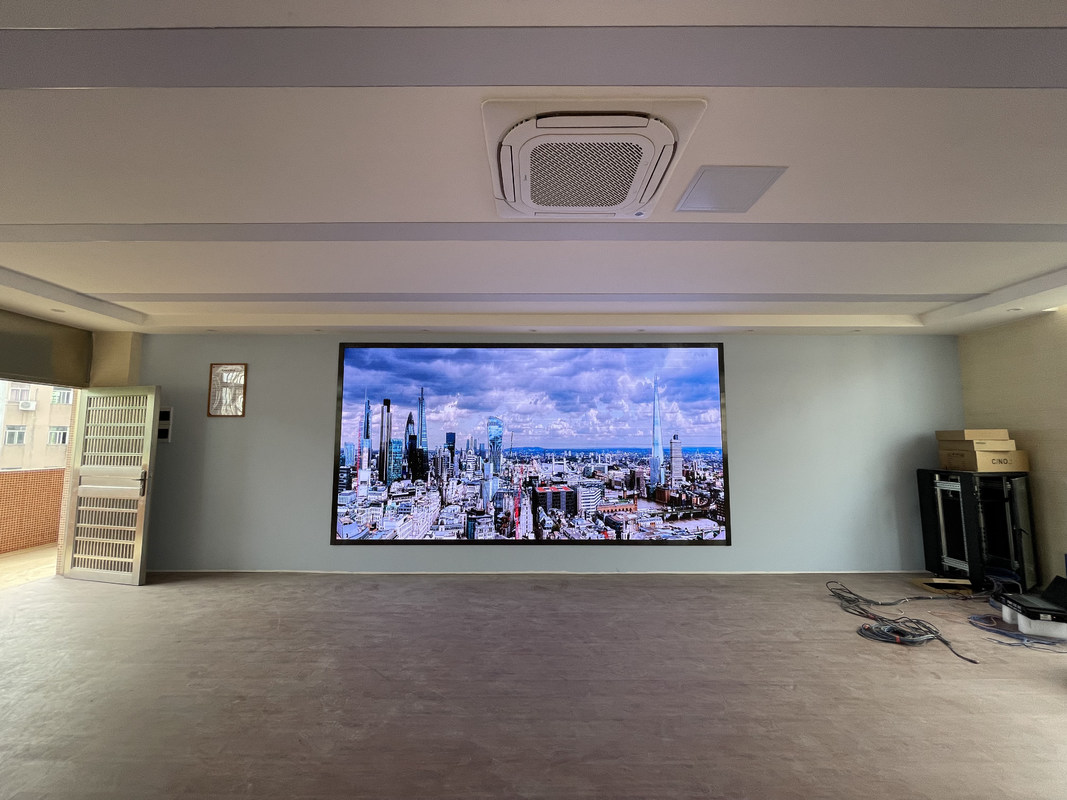

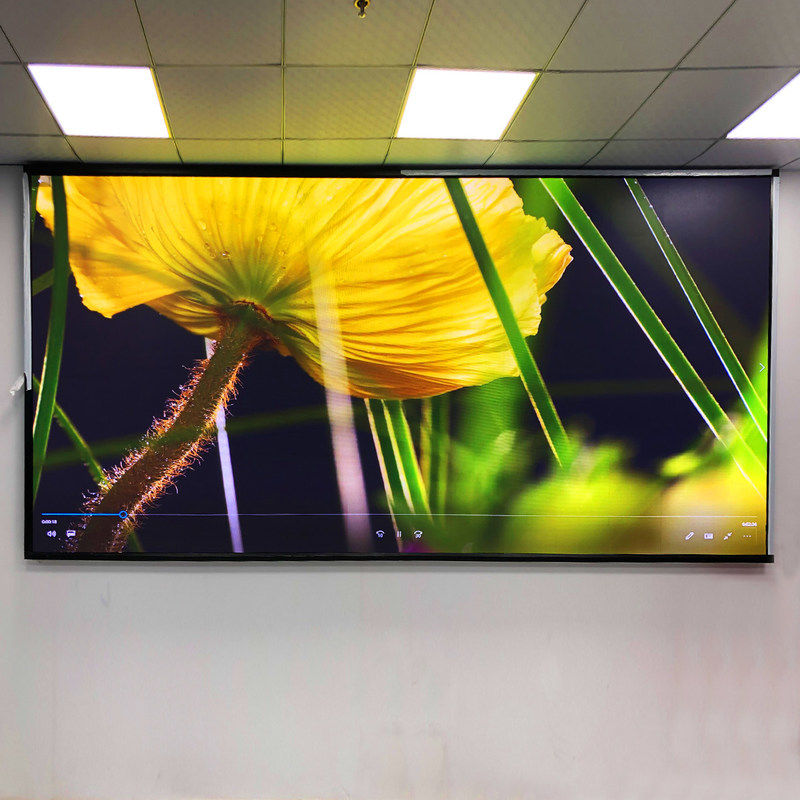

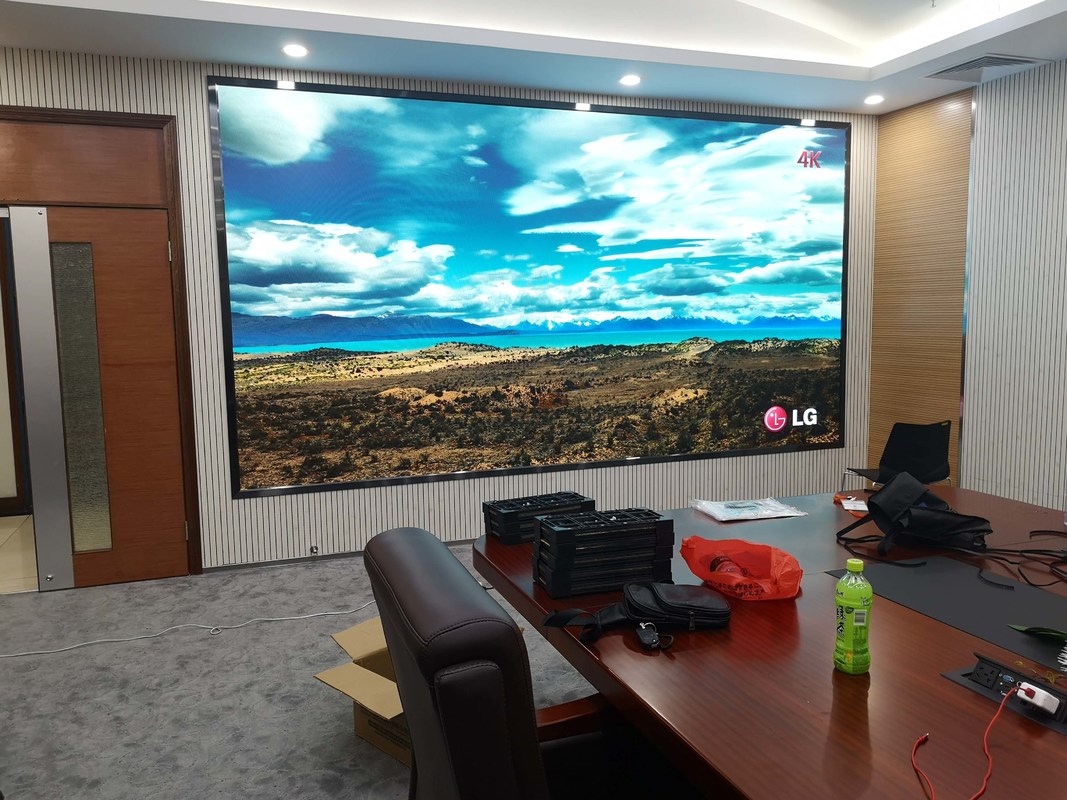

Case Presentation



1R1G1B Indoor LED Video Wall Small Spacing P1.875 LED Display Bank Exchange Rate Announcement 0

Packaging And Shipping

1R1G1B Indoor LED Video Wall Small Spacing P1.875 LED Display Bank Exchange Rate Announcement 1

Wooden case or flight is available, customer can choose according to their requirement.
