Home > products > Outdoor Full Color LED Display > Stadium P3 Outdoor Full Color LED Display Waterproof Multimedia Advertising

Stadium P3 Outdoor Full Color LED Display Waterproof Multimedia Advertising

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: Canyi

Certification: CCC FC CE FC CB ROHS

Model Number: Outdoor P3 full color led module

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs / 1 sqm

Price: Negotiation

Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case

Delivery Time: 7-12 working days after received your payment

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 4000 Square Meters per Month

Get Best Price
Highlight:

P3 Outdoor Full Color LED Display

,

Advertising Outdoor Full Color LED Display

,

Multimediastadium led display

Brand Name:
Outdoor P3 Full Color LED Display
Pitch:
3mm
Module Size:
192*192mm
Module Resolution:
64x64 Dots
Density:
111111 Dots/sqm
Brightness:
5500cd/sqm
Refresh Rate:
≥3840HZ
Drive Type:
1/16 Scan
Protection Level:
IP31
Pixel Configuration:
1R1G1B
Brand Name:
Outdoor P3 Full Color LED Display
Pitch:
3mm
Module Size:
192*192mm
Module Resolution:
64x64 Dots
Density:
111111 Dots/sqm
Brightness:
5500cd/sqm
Refresh Rate:
≥3840HZ
Drive Type:
1/16 Scan
Protection Level:
IP31
Pixel Configuration:
1R1G1B
Stadium P3 Outdoor Full Color LED Display Waterproof Multimedia Advertising

P3 outdoor electronic display stadium scoring waterproof box multimedia advertising​



Specification



ITEM P3 Technical parameter
Module Module Dimension (W)192mm*192mm(H)
Pixel pitch 3mm
Pixel Density 111111pixels/
Pixel configuration 1R1G1B
LED specification SMD1921
Pixel resolution (W)64*64(H)
resolution 4096dots
Current 3.5-4A
  Drive type 1/16 Scanning
Refresh frequency ≥3840HZ
Brightness 5500cd/
Optimum Viewing Distance(m) 3~20m
Max power consumption 800W/㎡
Ave power consumption 350W/㎡
Humidity 10%~95%RH
Working Voltage 5V
Display Card DVI Graphics
IP Grade IP31





The introdution of outdoor full-color display product:



1. advanced and reasonable system design, stable display effect, convenient installation and maintenance, high definition and high resolution.

2. All weather work: rainproof and waterproof, brightness 5500cd/vivid color, high refresh frequency, anti-static, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.







Features:



1. Die-casting aluminum, secure and nice in constitution.
2. No fans, mute when operation.
3. Dustproof, IP43.
4. High refresh rate and high gray depth.
5. Completely black LED with high contrast.
6. Standard cabinet size is 500mm x 500mm and 480x480mm.
7. Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the rang.
8. Exactly connected and easy to install and dismount.

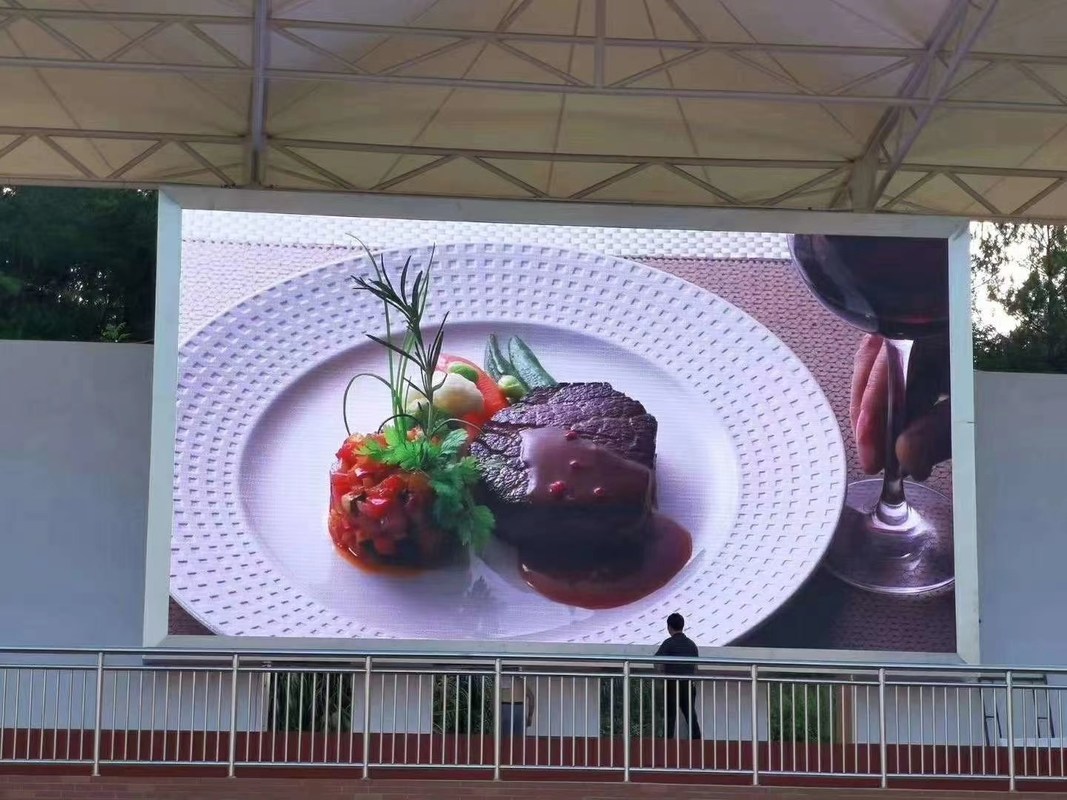

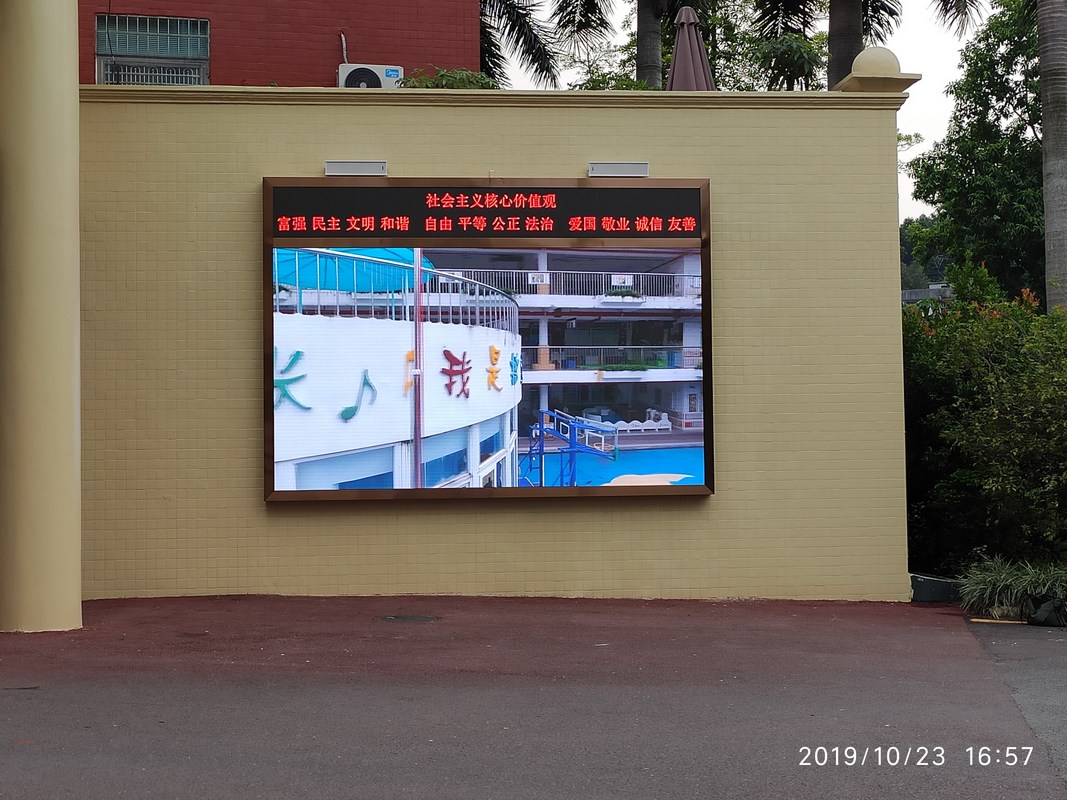

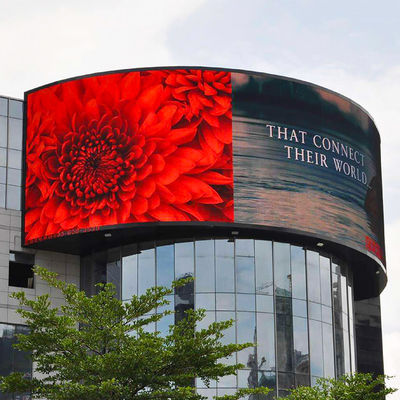

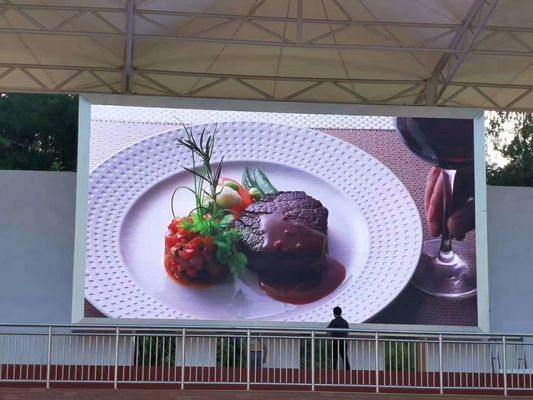

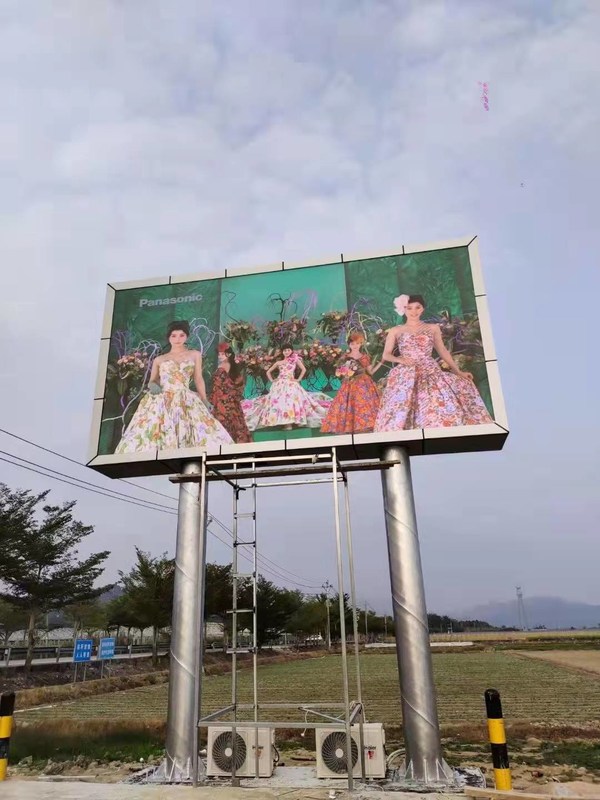

Case Presentation



Stadium P3 Outdoor Full Color LED Display Waterproof Multimedia Advertising 0

Packaging And Shipping

Stadium P3 Outdoor Full Color LED Display Waterproof Multimedia Advertising 1

Wooden case or flight is available, customer can choose according to their requirement.
