P2.5 Indoor Fixed LED Display HD LED Display SMD2121 For Meeting Room Control Center

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: Canyi

Certification: CCC FC CE FC CB ROHS

Model Number: Indoor P2.5 full color led module

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs / 1 sqm

Price: Negotiation

Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case

Delivery Time: 7-12 working days after received your payment

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5000 Square Meters per Month

Get Best Price
Highlight:

HD Indoor Fixed LED Display

,

SMD2121 Indoor Fixed LED Display

,

Meeting Room P2.5 led display

Pixel Configuration:
1R1G1B
Port:
Guangzhou
Brand Name:
Indoor Full Color LED Display
Module Size:
320*160mm
Density:
160000 Dots/sqm
Brightness:
550cd/sqm
Pixel Configuration:
1R1G1B
Port:
Guangzhou
Brand Name:
Indoor Full Color LED Display
Module Size:
320*160mm
Density:
160000 Dots/sqm
Brightness:
550cd/sqm
P2.5 Indoor Fixed LED Display HD LED Display SMD2121 For Meeting Room Control Center

Indoor full color P2.5 HD LED Display SMD2121 for meeting room control center





Specification



ITEM P2.5

Technical parameter

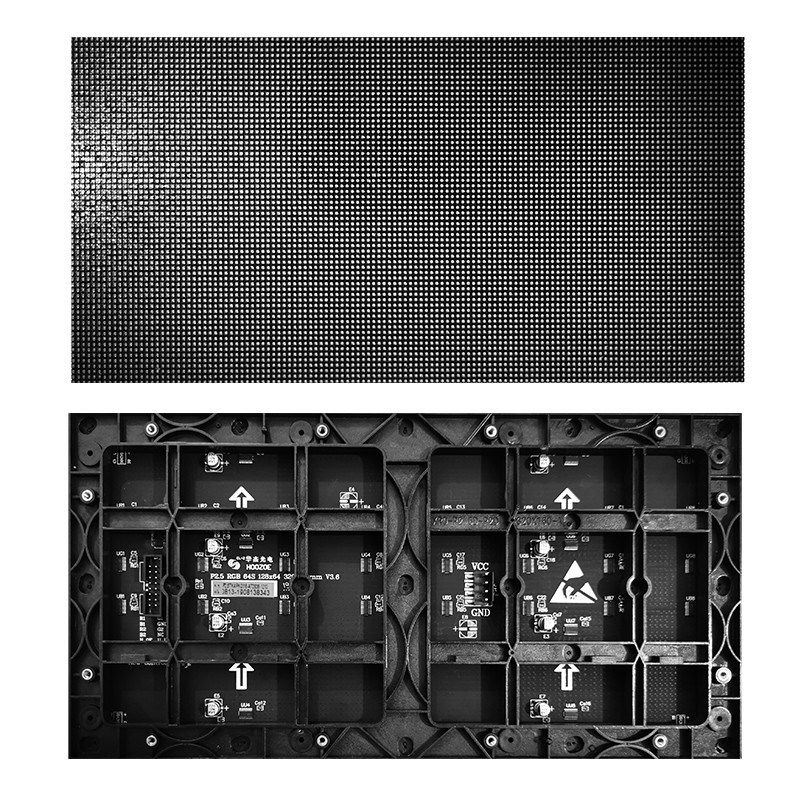

Module

Module Dimension

(W)320mm*160mm(H)

Pixel pitch

2.5mm

Pixel Density

160000pixels/M2

Pixel configuration

1R1G1B

LED specification

SMD2121

Pixel resolution

(W)128*64(H)

resolution

8192dots

Current

3.5-4A



Drive type

1/32 Scanning

Refresh frequency

≥3840HZ

Brightness

550cd/ M2

Optimum Viewing Distance(m)

2-15m

Max power consumption

689W/㎡

Ave power consumption

229W/㎡

Working Temperature

-20℃ to +60℃

Working Voltage

5V

Display Card

DVI Graphics

IP Grade

IP31







The introdution of indoor full-color display product:



1. advanced and reasonable system design, stable display effect, convenient installation and maintenance, ultra-high definition and ultra-high resolution.

2. All weather work: vivid color, high refresh frequency, anti-static, dust-proof, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.









Features:



1. Video play: it can play video programs in video camera, VCD, DVD and LD; it can also play files of different formats, such as AVI, MOV, MPG, DAT and VOB; it has three display formats, namely, VGA+VIDE, Video and VGA;

2. Information release: it can display a variety of computer information, graphs, two-dimensional animation and three-dimensional animation; it has lots of display methods, such as rolling, lead-in, lead-out, up shift, left shift and circulation; font, character size, letter and speed can be set randomly;

3. Network function With the network interface, it can be connected with the Internet to play information on the Internet at the same time; display screens at different places can be centralizedly controlled through Internet according to customers’ requirements, and “VPM+broadband” may be adopted for remote control.

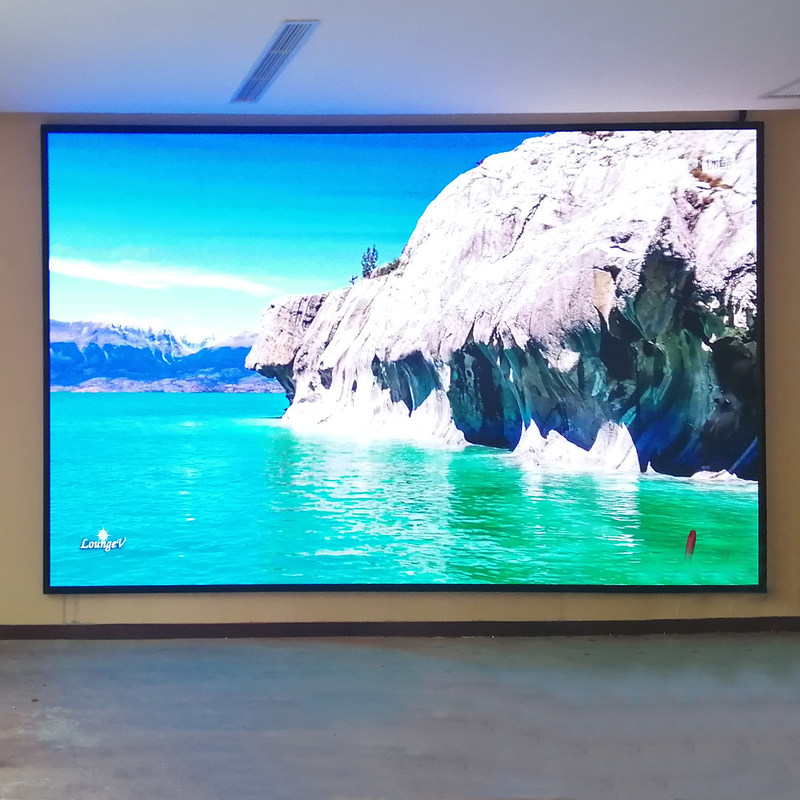

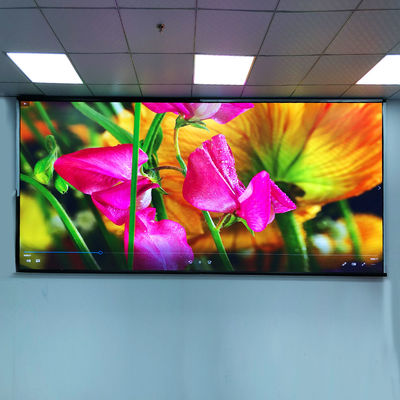

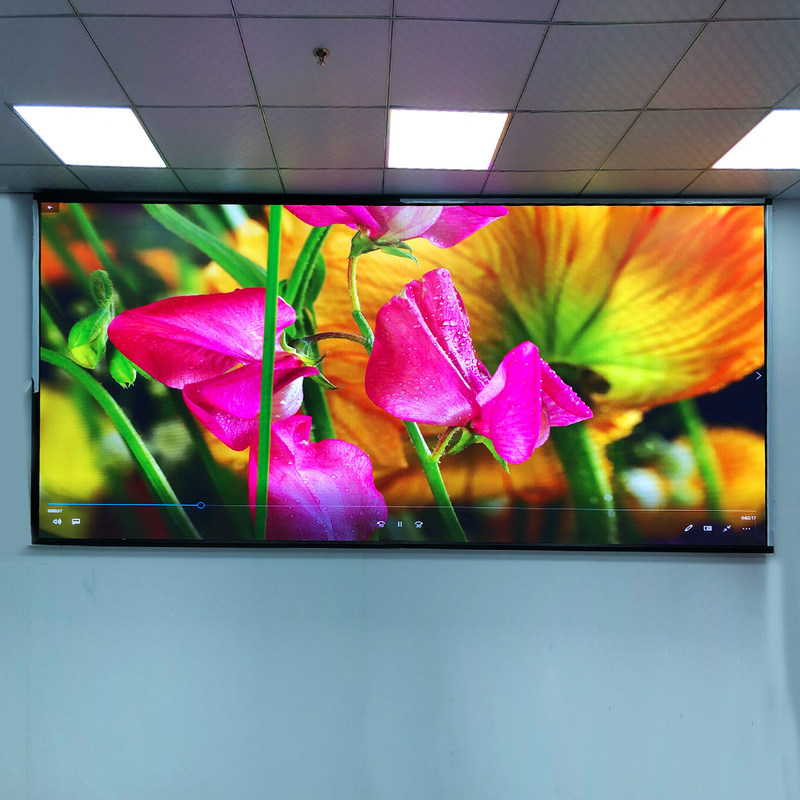

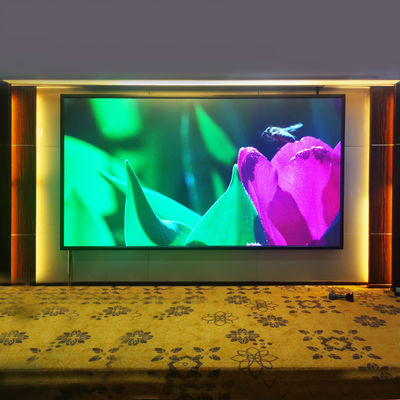

Case Presentation



P2.5 Indoor Fixed LED Display HD LED Display SMD2121 For Meeting Room Control Center 2









P2.5 Indoor Fixed LED Display HD LED Display SMD2121 For Meeting Room Control Center 4

Packaging And Shipping

P2.5 Indoor Fixed LED Display HD LED Display SMD2121 For Meeting Room Control Center 6

Air box or wooden case is available, customer can choose according to their requirement.
