Home > products > Indoor Fixed LED Display > P1. 86 Indoor Fixed LED Display Electronic Conference Room Small Spacing HD Screen Display

P1. 86 Indoor Fixed LED Display Electronic Conference Room Small Spacing HD Screen Display

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: Canyi

Certification: CCC FC CE FC CB ROHS

Model Number: Indoor P1.86 full color led module

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs / 1 sqm

Price: Negotiation

Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case

Delivery Time: 7-12 working days after received your payment

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5000 Square Meters per Month

Get Best Price
Highlight:

P1. 86 Indoor Fixed LED Display

,

500cd/sqm Indoor Fixed LED Display

,

Small Spacing HD Screen Display

Brand Name:
Indoor P1.86 Full Color LED Display
Module Size:
320*160mm
Module Resolution:
172x86 Dots
Density:
288906 Dots/sqm
Brightness:
550cd/sqm
Refresh Rate:
≥3840HZ
Brand Name:
Indoor P1.86 Full Color LED Display
Module Size:
320*160mm
Module Resolution:
172x86 Dots
Density:
288906 Dots/sqm
Brightness:
550cd/sqm
Refresh Rate:
≥3840HZ
P1. 86 Indoor Fixed LED Display Electronic Conference Room Small Spacing HD Screen Display

P1. 86 indoor LED electronic screen conference room small spacing HD screen display​



Specification



ITEM P1.86 Technical parameter
Module Module Dimension (W)320mm*160mm(H)
Pixel pitch 1.86mm
Pixel Density 288906pixels/M2
Pixel configuration 1R1G1B
LED specification SMD1515
Pixel resolution (W)172*86(H)
resolution 14792dots
Current 3.5-4A
  Drive type 1/43 Scanning
Refresh frequency ≥3840HZ
Brightness 550cd/ M2
Optimum Viewing Distance(m) 2m
Max power consumption 663W/㎡
Ave power consumption 221W/㎡
Working Temperature -20℃ to +60℃
Working Voltage 5V
Display Card DVI Graphics
IP Grade IP31





The introdution of indoor full-color display product:



1. advanced and reasonable system design, stable display effect, convenient installation and maintenance, ultra-high definition and ultra-high resolution.

2. All weather work: vivid color, high refresh frequency, anti-static, dust-proof, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.







Features:



1. Easy to install and disassemble.
2. Indication lights to show status of power and signal status
3. The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led lamp
7. Anti-interference: special anti electronic-magnetic interference function
8. High precision: seamless splicing though CNC machine
9. Seamless connection:The aluminum die-casting technology,togrther with the high precision CNC procession,
makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
10. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.

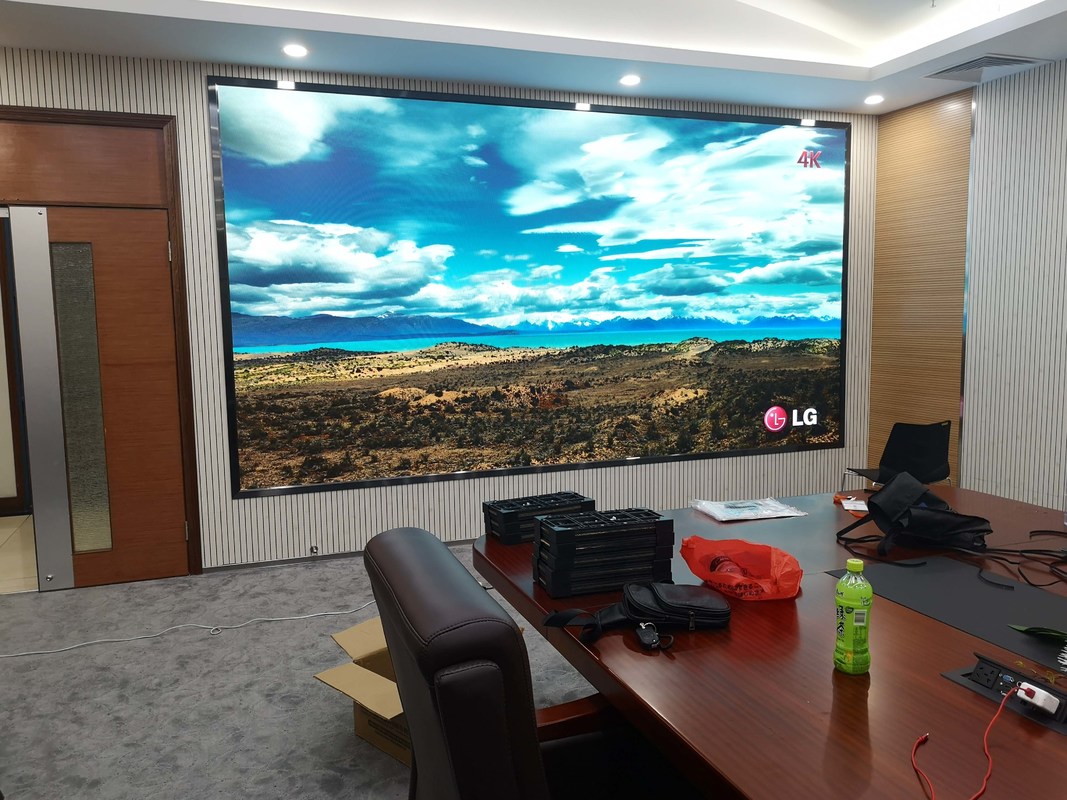

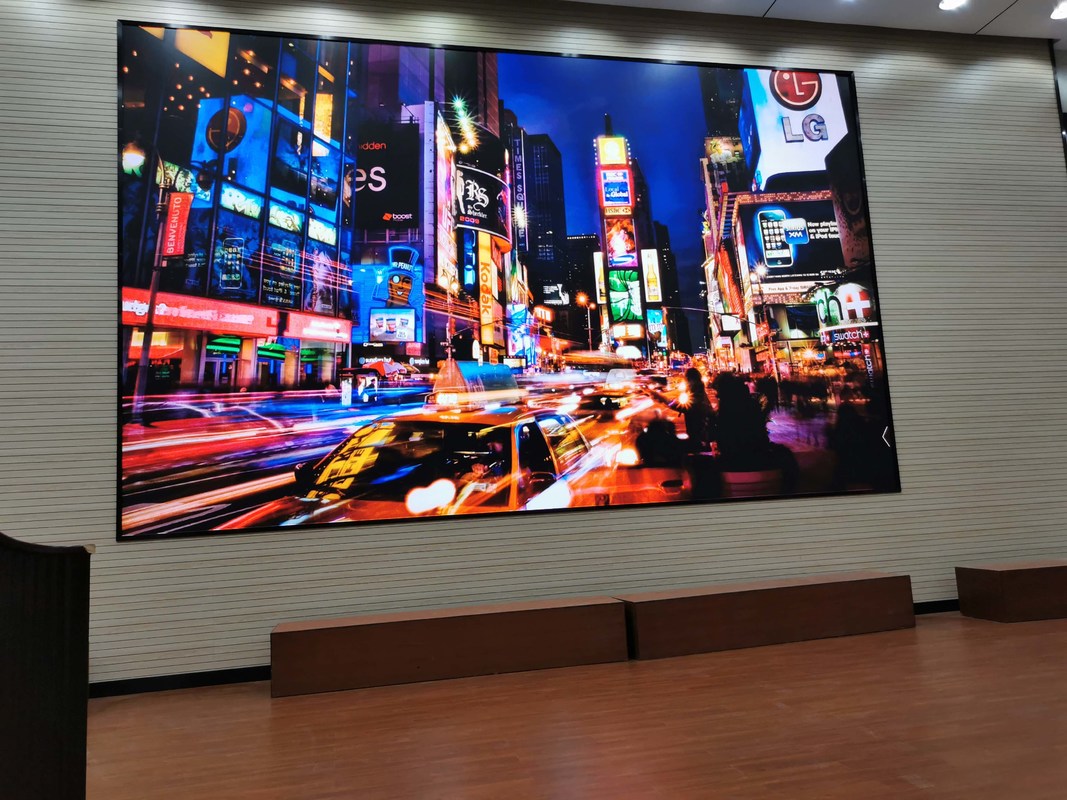

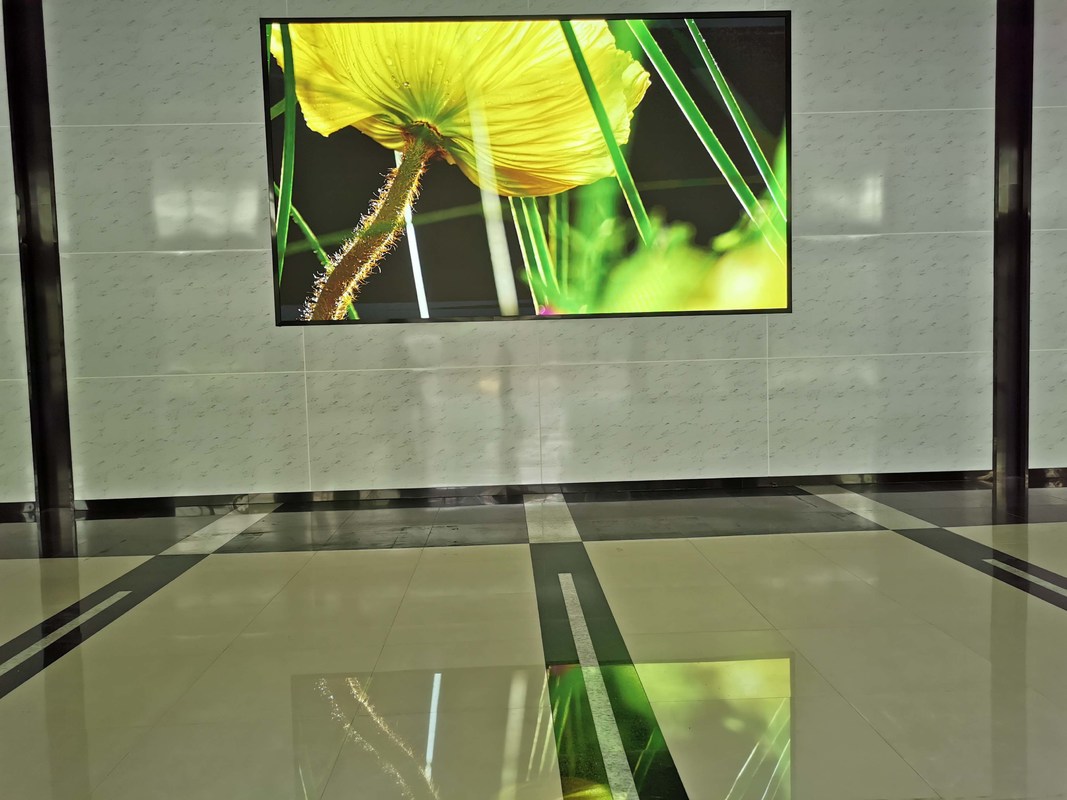

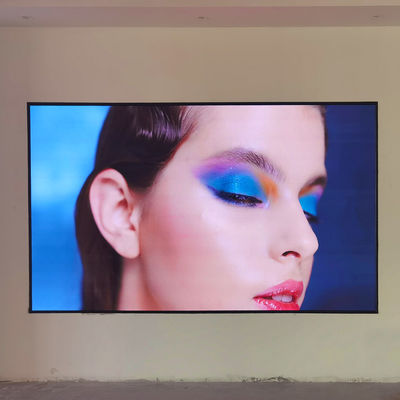

Case Presentation



P1. 86 Indoor Fixed LED Display Electronic Conference Room Small Spacing HD Screen Display 0

Packaging And Shipping

P1. 86 Indoor Fixed LED Display Electronic Conference Room Small Spacing HD Screen Display 1

Wooden case or flight is available, customer can choose according to their requirement.



FAQ



1. How can I get the price?

- We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."



2. What is your lead time?

- It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.



3. What is your payment term?

- EX factory price, 30% deposit, 70%T/T payment before shipment.



4. What is the shipping method?

- It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.



5. How do you make our business long-term and good relationship?

- 1. We keep good quality and competitive price to ensure our customers benefit ;

- 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
