P3 Outdoor Led Display Signs Screen 64x64 Dots 192*192mm

P3 Outdoor Led Display Signs Screen 64x64 Dots 192*192mm

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Canyi
Certification: CCC FC CE FC CB ROHS
Model Number: Outdoor P3 full color led module

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs / 1 sqm
Price: Negotiation
Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case
Delivery Time: 7-12 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Brand Name: Outdoor P3 Full Color LED Display Pitch: 3mm
Module Size: 192*192mm Module Resolution: 64x64 Dots
Density: 111111 Dots/sqm Brightness: 5500cd/sqm
Pixel Configuration: 1R1G1B Protection Level: IP31
Refresh Rate: ≥3840HZ Drive Type: 1/16 Scan
High Light:

64x64 Dots Outdoor Led Display Signs


192*192mm Outdoor Led Display Signs


p3 outdoor led screen

Product Description

Outdoor full color p3 LED display floor mounted bus station advertising screen




ITEM P3 Technical parameter
Module Module Dimension (W)192mm*192mm(H)
Pixel pitch 3mm
Pixel Density 111111pixels/
Pixel configuration 1R1G1B
LED specification SMD1921
Pixel resolution (W)64*64(H)
resolution 4096dots
Current 3.5-4A
  Drive type 1/16 Scanning
Refresh frequency ≥3840HZ
Brightness 5500cd/
Optimum Viewing Distance(m) 3~20m
Max power consumption 800W/㎡
Ave power consumption 350W/㎡
Humidity 10%~95%RH
Working Voltage 5V
Display Card DVI Graphics
IP Grade IP31



The introdution of outdoor full-color display product:


1. advanced and reasonable system design, stable display effect, convenient installation and maintenance, high definition and high resolution.

2. All weather work: rainproof and waterproof, brightness 5500cd/vivid color, high refresh frequency, anti-static, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.





1. Computer live control .can use video processor .Input/Output HDMI DPI DVI SDI
2.Wireless remote control .USB WIFI 4G/5G Phone app Cloud etc

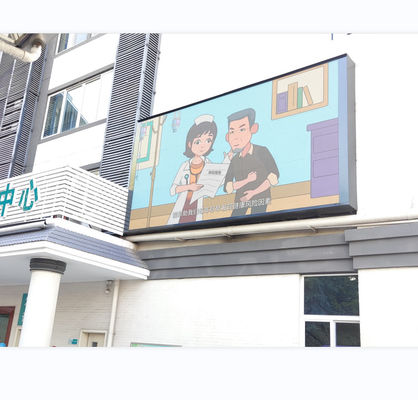

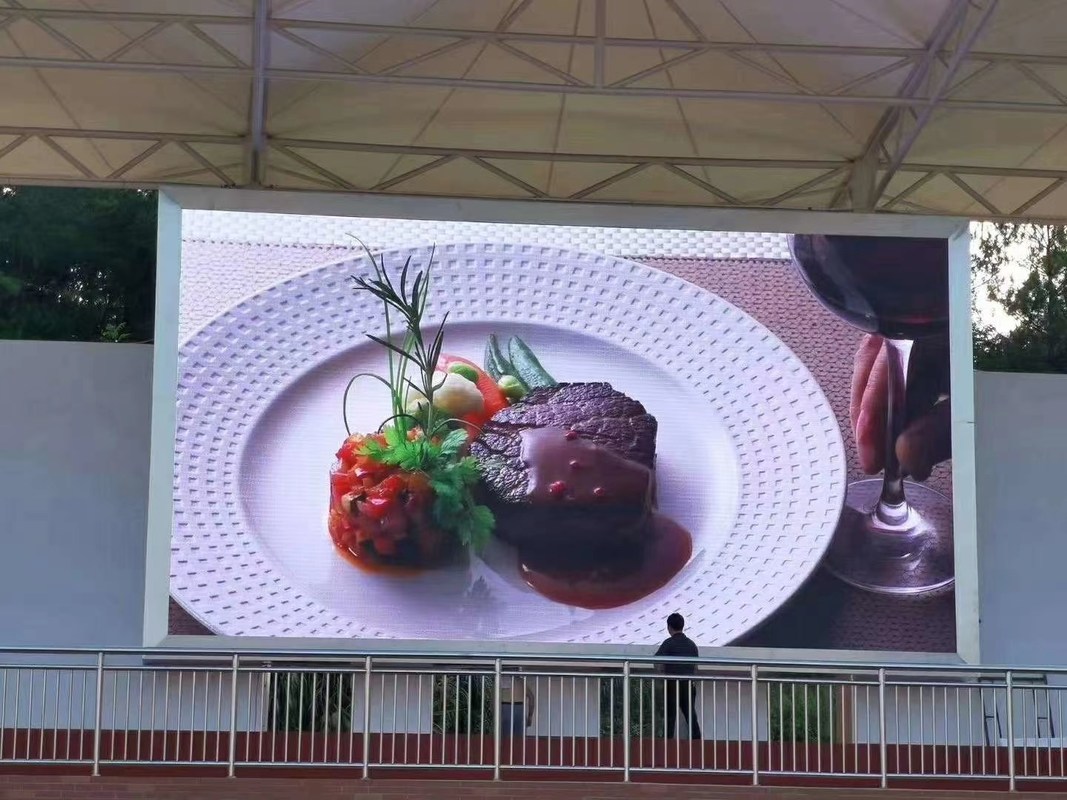

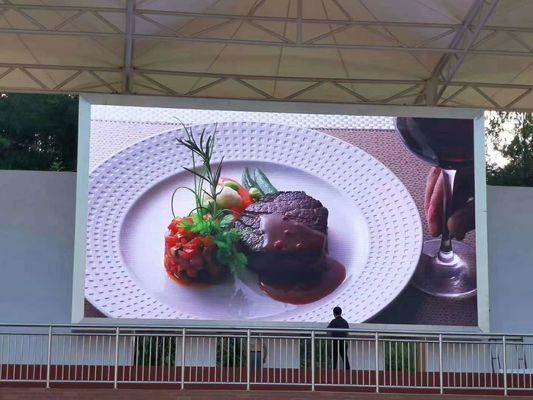

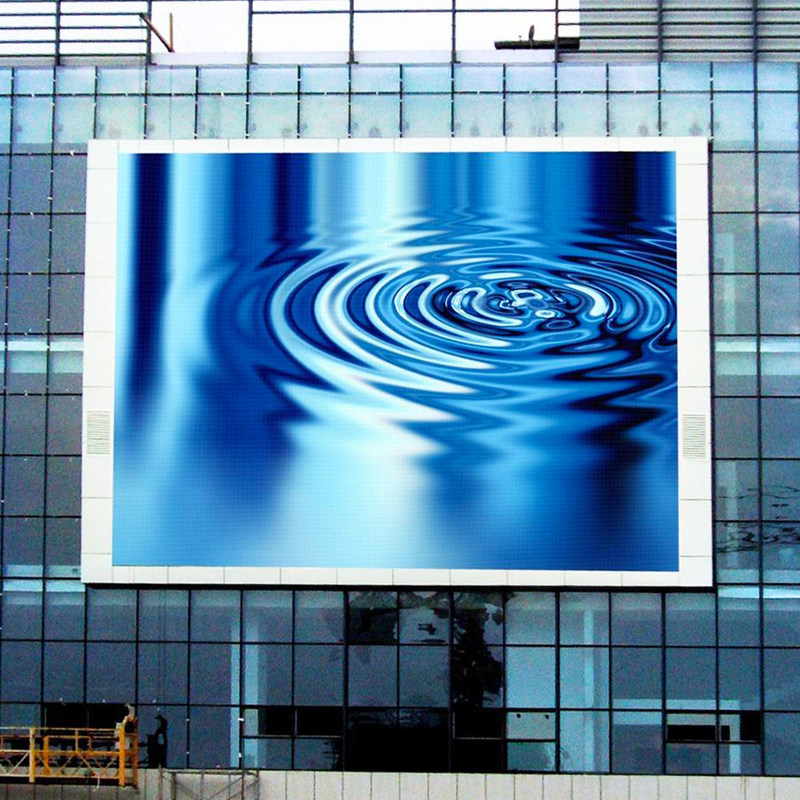

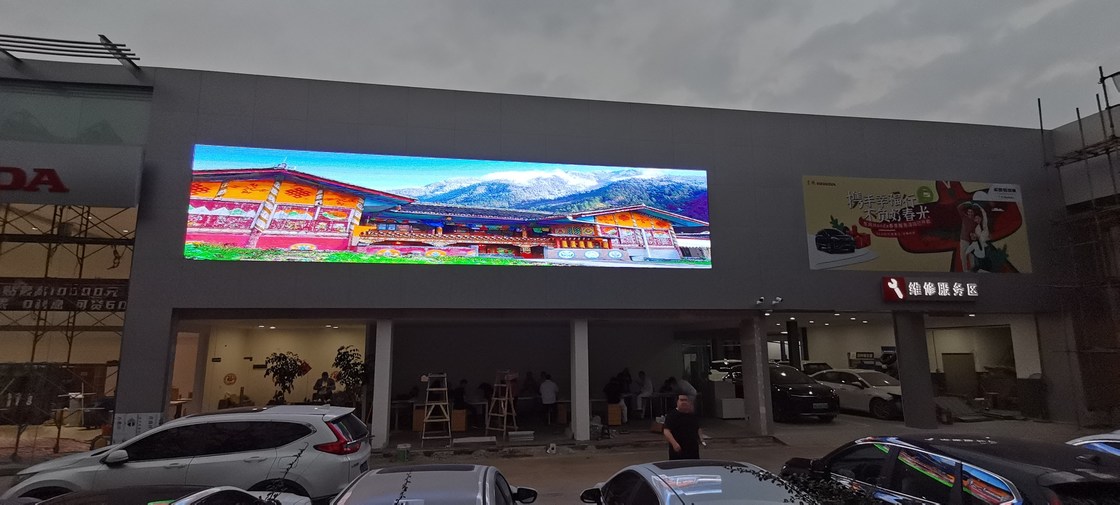

Case Presentation

P3 Outdoor Led Display Signs Screen 64x64 Dots 192*192mm 0


Packaging And Shipping

P3 Outdoor Led Display Signs Screen 64x64 Dots 192*192mm 1

Wooden case or flight is available, customer can choose according to their requirement.




1. How can I get the price?

- We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."


2. What is your lead time?

- It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.


3. What is your payment term?

- EX factory price, 30% deposit, 70%T/T payment before shipment.


4. What is the shipping method?

- It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.


5. How do you make our business long-term and good relationship?

- 1. We keep good quality and competitive price to ensure our customers benefit ;

- 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.









Want to Know more details about this product
I am interested in P3 Outdoor Led Display Signs Screen 64x64 Dots 192*192mm could you send me more details such as type, size, quantity, material, etc.
Waiting for your reply.
