Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Canyi
Certification: CCC FC CE FC CB ROHS
Model Number: Outdoor P6 full color led module
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs / 1 sqm
Price: Negotiation
Packaging Details: Carton，Honeycomb box，Wooden box，Flight Case
Delivery Time: 7-12 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000 Square Meters per Month
Brand Name: |
Outdoor P6 Full Color LED Display |
Pitch: |
6mm |
Module Size: |
192*192mm |
Module Resolution: |
32x32 Dots |
Brightness: |
5500cd/sqm |
Density: |
27777 Dots/sqm |
Drive Type: |
1/8 Scan |
Refresh Rate: |
≥3840HZ |
Pixel Configuration: |
1R1G1B |
Protection Level: |
IP65 |
Brand Name: |
Outdoor P6 Full Color LED Display |
Pitch: |
6mm |
Module Size: |
192*192mm |
Module Resolution: |
32x32 Dots |
Brightness: |
5500cd/sqm |
Density: |
27777 Dots/sqm |
Drive Type: |
1/8 Scan |
Refresh Rate: |
≥3840HZ |
Pixel Configuration: |
1R1G1B |
Protection Level: |
IP65 |
P6 outdoor LED screen rainproof full color curtain wall electronic display
Specification
| Outdoor full color LED display | |||
| Pitch/mm | P6 | P6 | P6 |
| Module size/mm | 192*192 | 192*192 | 192*192 |
| Density of pixel/(dots/m2) | 27,777 | 27,777 | 27,777 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B |
| Led encapsulation | SMD2727 | SMD2727 | SMD3535 |
| Resolution of module | 32*32 | 32*32 | 32*32 |
| Optimum viewing distance | 6-50m | 6-50m | 6-50m |
| View angle / ° | 140H,120V | 140H,120V | 140H,120V |
| Size of cabinet/mm | 576*576 | 576*576 | 576*576 |
| Weight of cabinet/kg | 8 | 8 | 8 |
| Refresh rate Hz/S | ≥1920 | ≥1920 | ≥1920 |
| Luminance of white balance | 5500nits | 5500nits | 5500nits |
| Operation of Environmental Temperature/℃ | Below 40 -above 10 | ||
| Working voltage | 110-220 VAC/+/- 10% | ||
| Grey scale/color | displaying colors≥16.7M(synchronized) | ||
| Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | ||
| Input signal | USB,VGA,DVI,HDMI,Audio | ||
| Control system | (sending card,receiving cards and Hubs) | ||
| Average of non-failure life | >50,00h | ||
| Life span | >100,000h | ||
| Functionless dot rate | <0.0001 | ||
The introdution of outdoor full-color display product:
1) Video play: it can play video programs in video camera, VCD, DVD and LD; it can also play files of different formats, such as AVI, MOV, MPG, DAT and VOB; it has three display formats, namely, VGA+VIDE, Video and VGA;
2)Information release: it can display a variety of computer information, graphs, two-dimensional animation and three-dimensional animation; it has lots of display methods, such as rolling, lead-in, lead-out, up shift, left shift and circulation; font, character size, letter and speed can be set randomly;
3)Network function With the network interface, it can be connected with the Internet to play information on the Internet at the same time; display screens at different places can be centralizedly controlled through Internet according to customers’ requirements, and “VPM+broadband” may be adopted for remote control.
Features:
1. High Definition and can be adjusted, able to show DVD, TV, Dynamic images, VCRs, graphs, letters and animations for 24 hours, synchronized with the computer monitor.
2. With the features of waterproof, sunscreen, anti-static, damp proof, anti-freeze, anti-thundering.
3. With excellent equality and consistency of light, able to solve the problem of mosaic commendably.
4. With clear, exquisite and real display effect.
5. With big viewing angle to the horizontal line and vertical line, able to be watched at every angle, no picture change, no color excursion.
6. The cost of maintenance is low, as every LED lamp can be replaced.

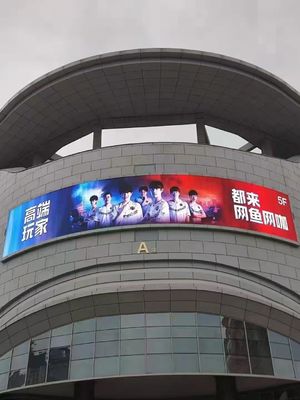

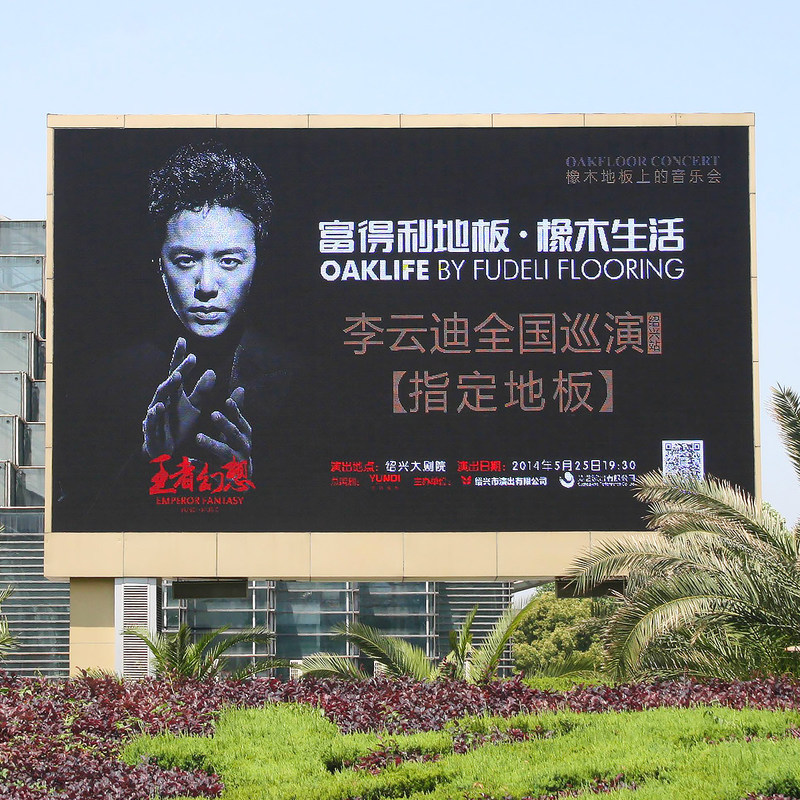

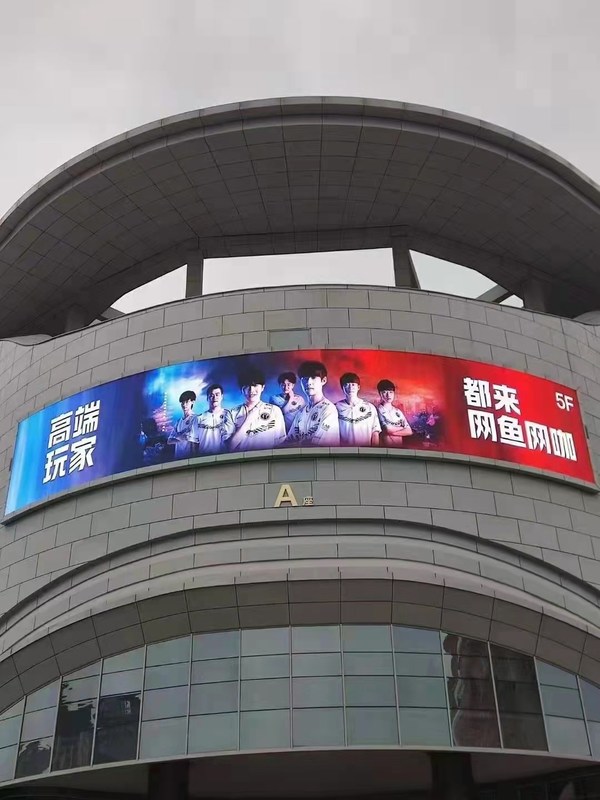

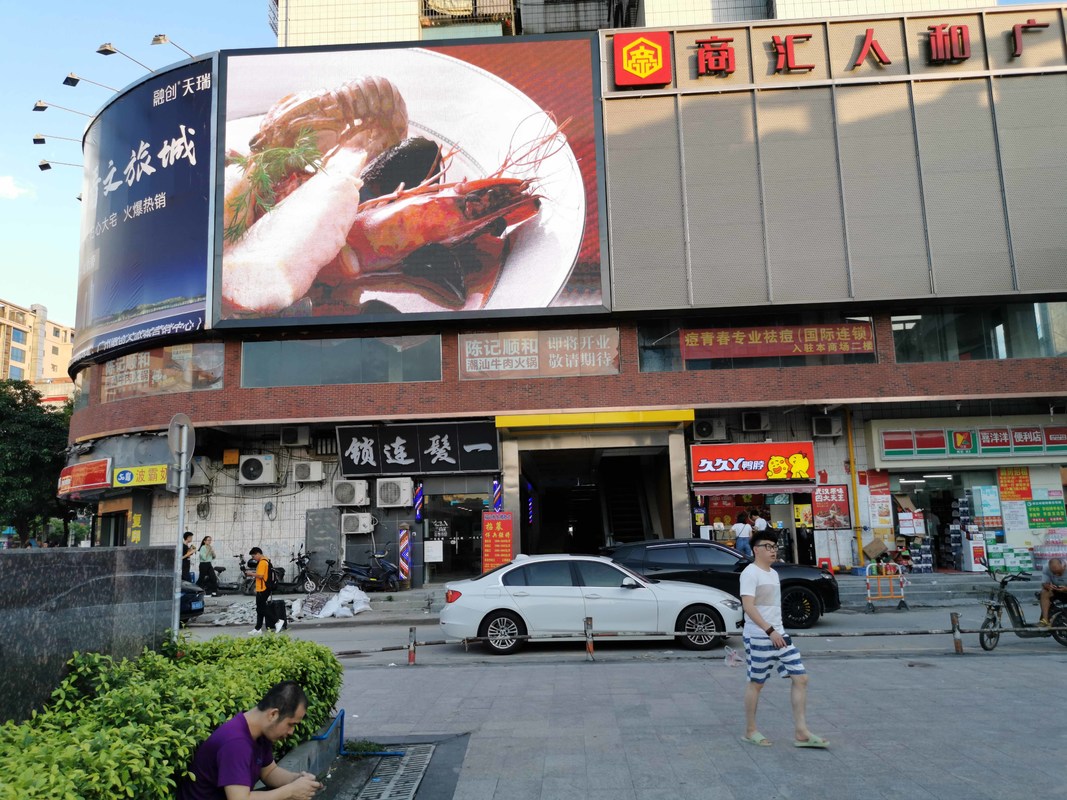

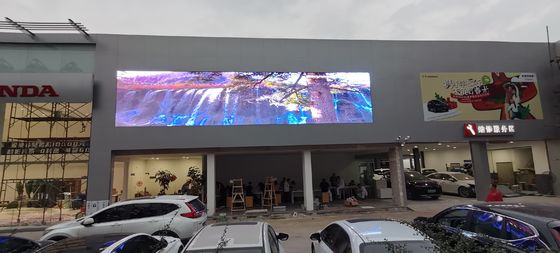

Case Presentation
Packaging And Shipping
Wooden case or flight is available, customer can choose according to their requirement.
FAQ
1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."
2. What is your lead time?
- It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
3. What is your payment term?
- EX factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the shipping method?
- It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
5. How do you make our business long-term and good relationship?
- 1. We keep good quality and competitive price to ensure our customers benefit ;
- 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
