• P6 led outdoor advertising screens Full Color Billboard Display Public Place Bulletin Board
  • P6 led outdoor advertising screens Full Color Billboard Display Public Place Bulletin Board
  • P6 led outdoor advertising screens Full Color Billboard Display Public Place Bulletin Board
  • P6 led outdoor advertising screens Full Color Billboard Display Public Place Bulletin Board
P6 led outdoor advertising screens Full Color Billboard Display Public Place Bulletin Board

P6 led outdoor advertising screens Full Color Billboard Display Public Place Bulletin Board

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Canyi
Certification: CCC FC CE FC CB ROHS
Model Number: Outdoor P6 full color led module

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs / 1 sqm
Price: Negotiation
Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case
Delivery Time: 7-12 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Brand Name: Outdoor P6 Full Color LED Display Pitch: 6mm
Module Size: 192*192mm Module Resolution: 32x32 Dots
Brightness: 5500cd/sqm Density: 27777 Dots/sqm
Drive Type: 1/8 Scan Pixel Configuration: 1R1G1B
Refresh Rate: ≥3840HZ Protection Level: IP65
High Light:

6mm Led Outdoor Advertising Screens

,

P6 Led Outdoor Advertising Screens

,

p6 full color smd led module

Product Description

LED outdoor p6 full color billboard display public place bulletin board



Specification



ITEM P6 Technical parameter
Module Module Dimension (W)192mm*192mm(H)
Pixel pitch 6mm
Pixel Density 27777 dots/
Pixel configuration 1R1G1B
LED specification SMD3535
Pixel resolution (W)32*32(H)
resolution 1024dots
Current 3.5-4A
  Drive type 1/8 Scanning
Refresh frequency ≥3840HZ
Brightness 5500cd/
Optimum Viewing Distance(m) 6~40m
Max power consumption 800W/㎡
Ave power consumption 350W/㎡
Humidity 10%~95%RH
Working Voltage 5V
Display Card DVI Graphics
IP Grade IP65







The introdution of outdoor full-color display product:



1. Advanced and reasonable system design, stable display effect, convenient installation and maintenance, high definition and high resolution.

2. All weather work: rainproof and waterproof, brightness 5500cd/vivid color, high refresh frequency, anti-static, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.



Features:



1. High Definition and can be adjusted, able to show DVD, TV, Dynamic images, VCRs, graphs, letters and animations for 24 hours, synchronized with the computer monitor.

2. With the features of waterproof, sunscreen, anti-static, damp proof, anti-freeze, anti-thundering.

3. With excellent equality and consistency of light, able to solve the problem of mosaic commendably.

4. With clear, exquisite and real display effect.

5. With big viewing angle to the horizontal line and vertical line, able to be watched at every angle, no picture change, no color excursion.

6. The cost of maintenance is low, as every LED lamp can be replaced.

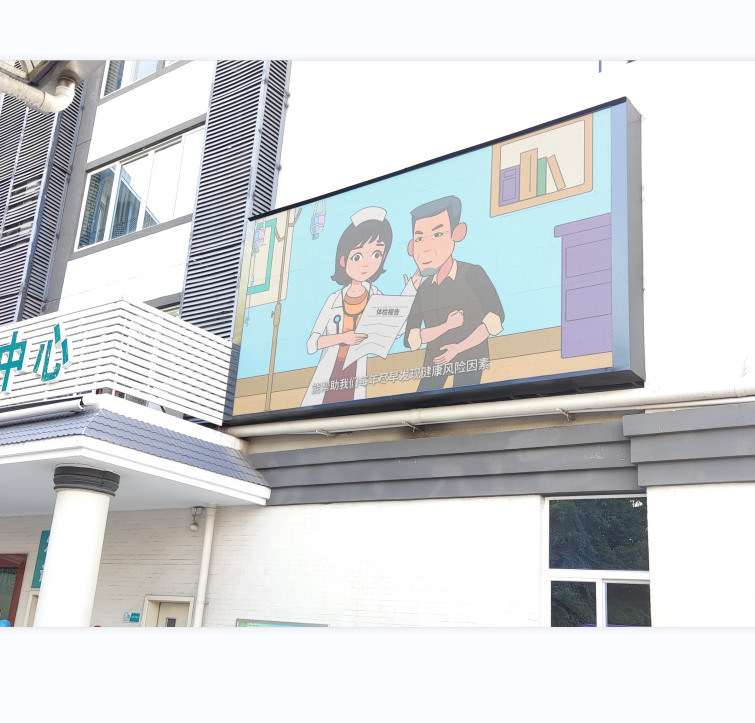

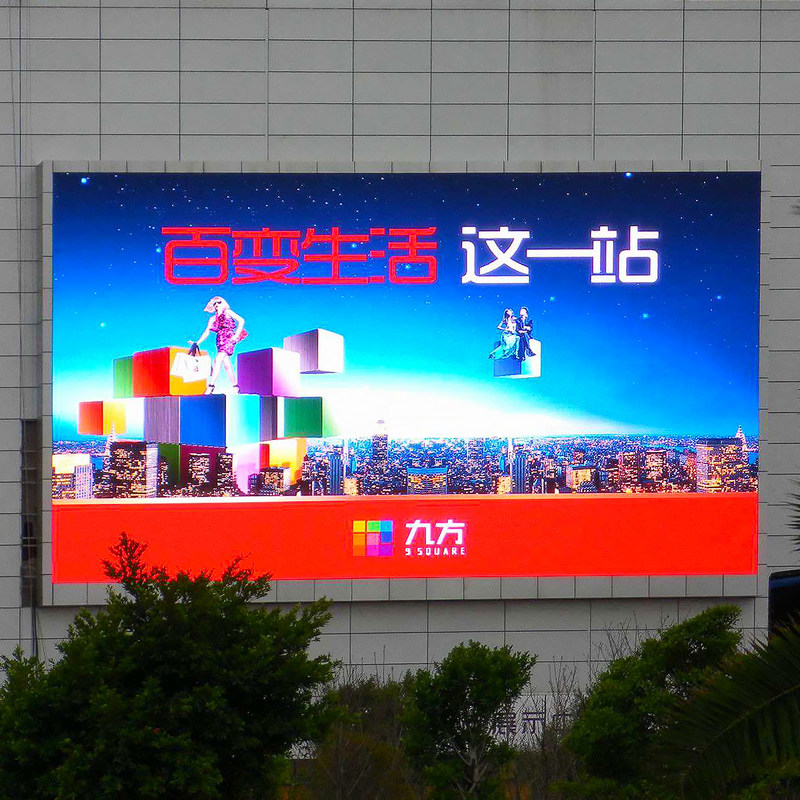

Case Presentation

P6 led outdoor advertising screens Full Color Billboard Display Public Place Bulletin Board 0



Packaging And Shipping

P6 led outdoor advertising screens Full Color Billboard Display Public Place Bulletin Board 1

Wooden case or flight is available, customer can choose according to their requirement.





FAQ



1. How can I get the price?

- We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."



2. What is your lead time?

- It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.



3. What is your payment term?

- EX factory price, 30% deposit, 70%T/T payment before shipment.



4. What is the shipping method?

- It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.



5. How do you make our business long-term and good relationship?

- 1. We keep good quality and competitive price to ensure our customers benefit ;

- 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

















Want to Know more details about this product
I am interested in P6 led outdoor advertising screens Full Color Billboard Display Public Place Bulletin Board could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
