P6 Large Outdoor Full Color LED Display Board Waterproof Box 192*192mm

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: Canyi

Certification: CCC FC CE FC CB ROHS

Model Number: Outdoor P6 full color led module

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs / 1 sqm

Price: Negotiation

Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case

Delivery Time: 7-12 working days after received your payment

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 4000 Square Meters per Month

Get Best Price
Highlight:

P6 Outdoor Full Color LED Display

,

192*192mm Outdoor Full Color LED Display

,

6mm large led display board

Brand Name:
Outdoor P6 Full Color LED Display
Pitch:
6mm
Module Size:
192*192mm
Module Resolution:
32x32 Dots
Brightness:
5500cd/sqm
Density:
27777 Dots/sqm
Drive Type:
1/8 Scan
Refresh Rate:
≥3840HZ
Pixel Configuration:
1R1G1B
Protection Level:
IP65
Brand Name:
Outdoor P6 Full Color LED Display
Pitch:
6mm
Module Size:
192*192mm
Module Resolution:
32x32 Dots
Brightness:
5500cd/sqm
Density:
27777 Dots/sqm
Drive Type:
1/8 Scan
Refresh Rate:
≥3840HZ
Pixel Configuration:
1R1G1B
Protection Level:
IP65
P6 Large Outdoor Full Color LED Display Board Waterproof Box 192*192mm

Electronic TV wall signboard display p6 outdoor full color waterproof box



Specification



Outdoor full color LED display
Pitch/mm P6 P6 P6
Module size/mm 192*192 192*192 192*192
Density of pixel/(dots/m2) 27,777 27,777 27,777
Pixel composition 1R1G1B 1R1G1B 1R1G1B
Led encapsulation SMD2727 SMD2727 SMD3535
Resolution of module 32*32 32*32 32*32
Optimum viewing distance 6-50m 6-50m 6-50m
View angle / ° 140H,120V 140H,120V 140H,120V
Size of cabinet/mm 576*576 576*576 576*576
Weight of cabinet/kg 8 8 8
Refresh rate Hz/S ≥1920 ≥1920 ≥1920
Luminance of white balance 5500nits 5500nits 5500nits
Operation of Environmental Temperature/℃ Below 40 -above 10
Working voltage 110-220 VAC/+/- 10%
Grey scale/color displaying colors≥16.7M(synchronized)
Brightness adjustment 256 levels of each color(manually),100 levels of each color(automatically)
Input signal USB,VGA,DVI,HDMI,Audio
Control system (sending card,receiving cards and Hubs)
Average of non-failure life >50,00h
Life span >100,000h
Functionless dot rate <0.0001



The introdution of outdoor full-color display product:



1. Advanced and reasonable system design, stable display effect, convenient installation and maintenance, high definition and high resolution.

2. All weather work: rainproof and waterproof, brightness 5500cd/vivid color, high refresh frequency, anti-static, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.



Features:



1. Advertising & entertainment
2. Equipment Status Display
3. Public Message
4. Traffic Information
5. Bulletin Board

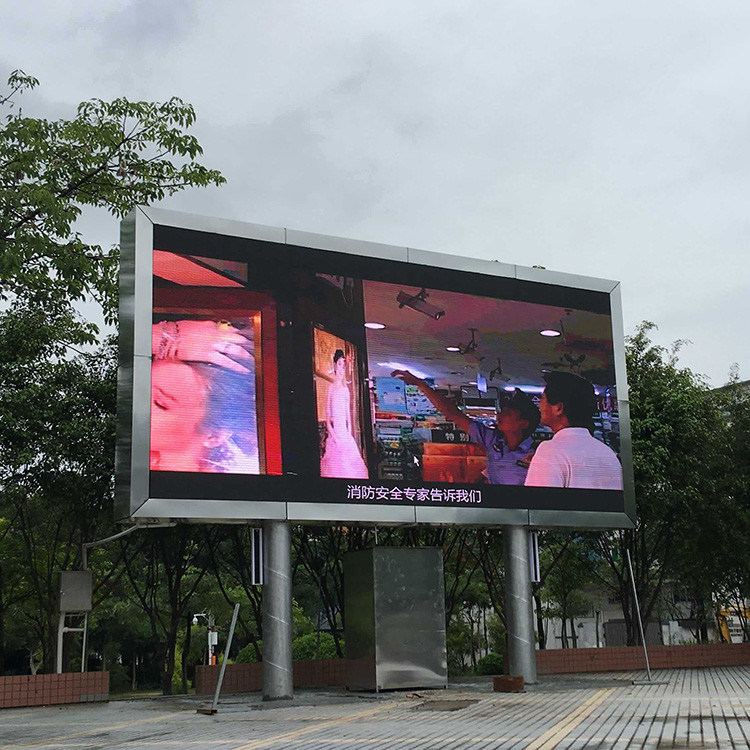

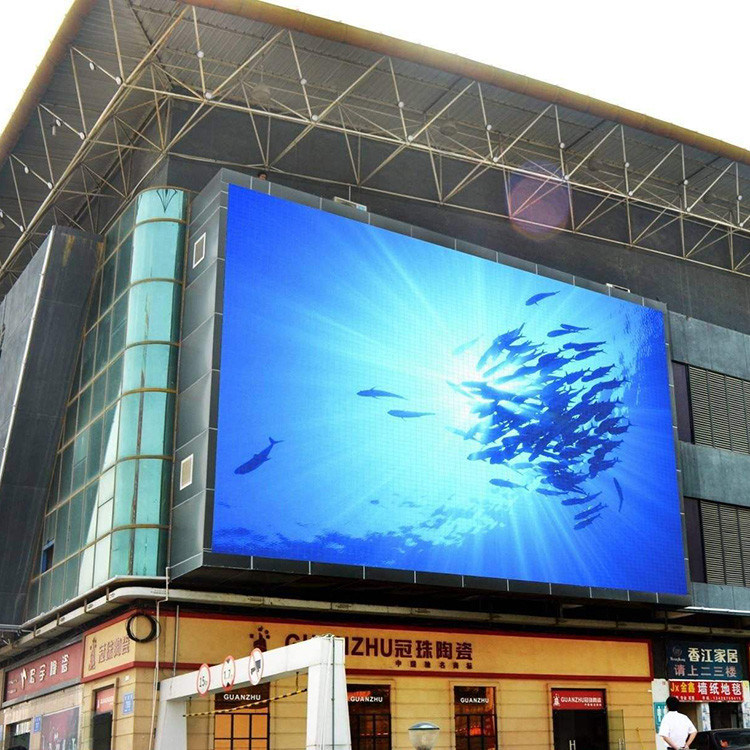

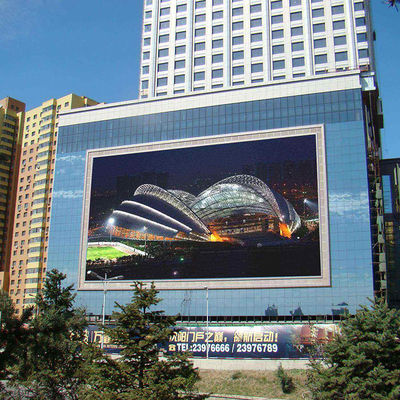

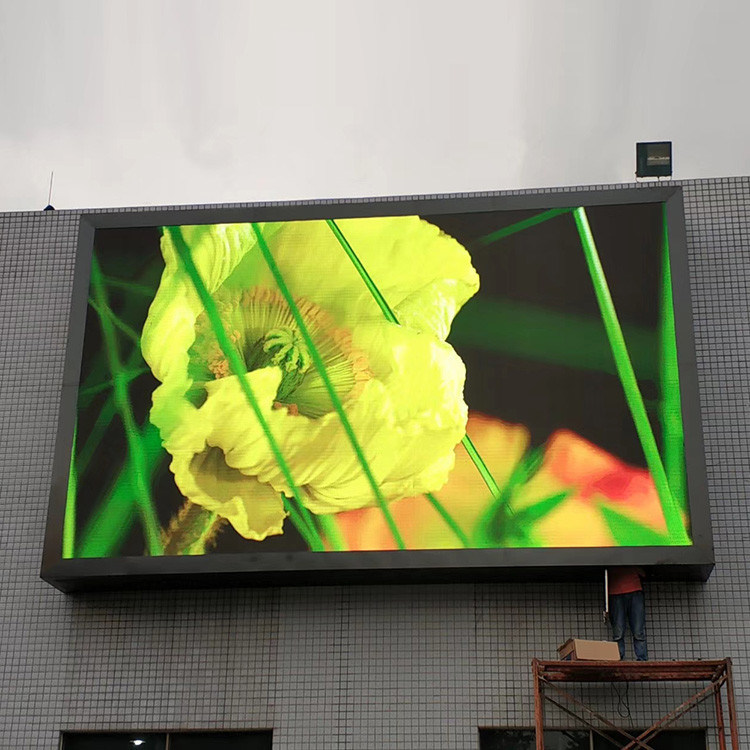

Case Presentation

P6 Large Outdoor Full Color LED Display Board Waterproof Box 192*192mm 0



Packaging And Shipping

P6 Large Outdoor Full Color LED Display Board Waterproof Box 192*192mm 1

Wooden case or flight is available, customer can choose according to their requirement.
