Home > products > Outdoor Fixed LED Display > P8 Outdoor Fixed LED Display Full Color Bulletin Notice Board Publicity Square School Park

P8 Outdoor Fixed LED Display Full Color Bulletin Notice Board Publicity Square School Park

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: Canyi

Certification: CCC FC CE FC CB ROHS

Model Number: Outdoor P8 full color led module

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs / 1 sqm

Price: Negotiation

Packaging Details: Carton,Honeycomb box,Wooden box,Flight Case

Delivery Time: 7-12 working days after received your payment

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 4000 Square Meters per Month

Get Best Price
Highlight:

P8 Outdoor Fixed LED Display

,

Publicity Outdoor Fixed LED Display

,

256*128mm outdoor digital notice board

Brand Name:
Outdoor P8 Full Color LED Display
Pitch:
8mm
Module Size:
256*128mm
Module Resolution:
32x16 Dots
Density:
15625 Dots/sqm
Brightness:
5500cd/sqm
Refresh Rate:
≥3840HZ
Drive Type:
1/4 Scan
Pixel Configuration:
1R1G1B
Protection Level:
IP65
Brand Name:
Outdoor P8 Full Color LED Display
Pitch:
8mm
Module Size:
256*128mm
Module Resolution:
32x16 Dots
Density:
15625 Dots/sqm
Brightness:
5500cd/sqm
Refresh Rate:
≥3840HZ
Drive Type:
1/4 Scan
Pixel Configuration:
1R1G1B
Protection Level:
IP65
P8 Outdoor Fixed LED Display Full Color Bulletin Notice Board Publicity Square School Park

LED outdoor p8 full color display bulletin board publicity square school park



Specification



ITEM P8 Technical parameter
Module Module Dimension (W)256mm*128mm(H)
Pixel pitch 8mm
Pixel Density 15625 dots/
Pixel configuration 1R1G1B
LED specification SMD3535
Pixel resolution (W)32*16(H)
resolution 512dots
Current 3.5-4A
  Drive type 1/4 Scanning
Refresh frequency ≥3840HZ
Brightness 5500cd/
Optimum Viewing Distance(m) 8~60m
Max power consumption 800W/㎡
Ave power consumption 350W/㎡
Humidity 10%~95%RH
Working Voltage 5V
Display Card DVI Graphics
IP Grade IP65







The introdution of outdoor full-color display product:



1. Advanced and reasonable system design, stable display effect, convenient installation and maintenance, high definition and high resolution.

2. All weather work: rainproof and waterproof, brightness 5500cd/vivid color, high refresh frequency, anti-static, good heat dissipation effect and high cost performance.

3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.

4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.

6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.

7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;

9. Diversified display modes: support multiple display modes;

10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.



Features:



1. High Definition and can be adjusted, able to show DVD, TV, Dynamic images, VCRs, graphs, letters and animations for 24 hours, synchronized with the computer monitor.

2. With the features of waterproof, sunscreen, anti-static, damp proof, anti-freeze, anti-thundering.

3. With excellent equality and consistency of light, able to solve the problem of mosaic commendably.

4. With clear, exquisite and real display effect.

5. With big viewing angle to the horizontal line and vertical line, able to be watched at every angle, no picture change, no color excursion.

6. The cost of maintenance is low, as every LED lamp can be replaced.

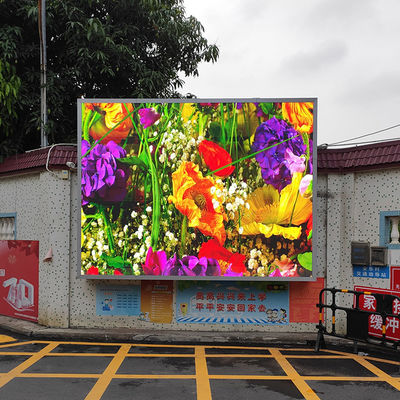

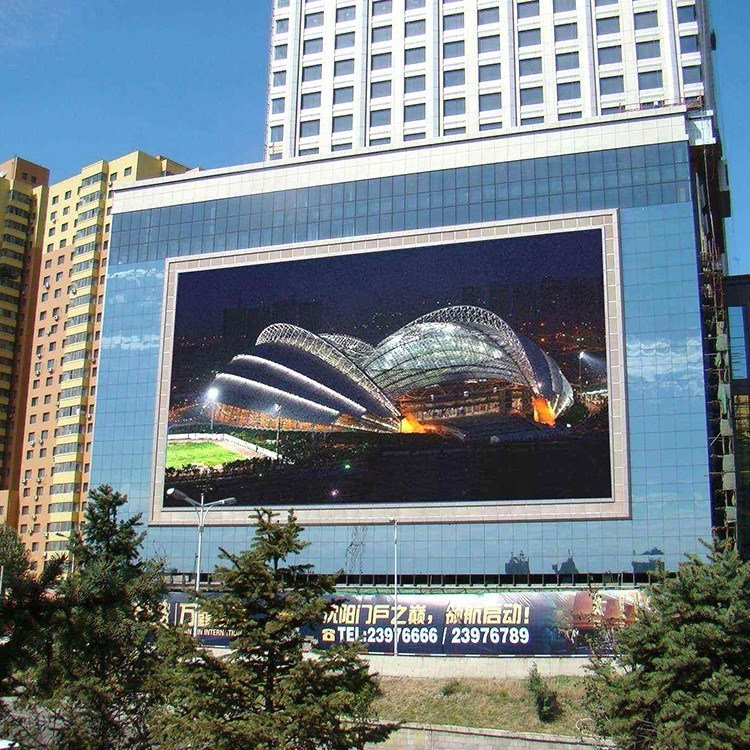

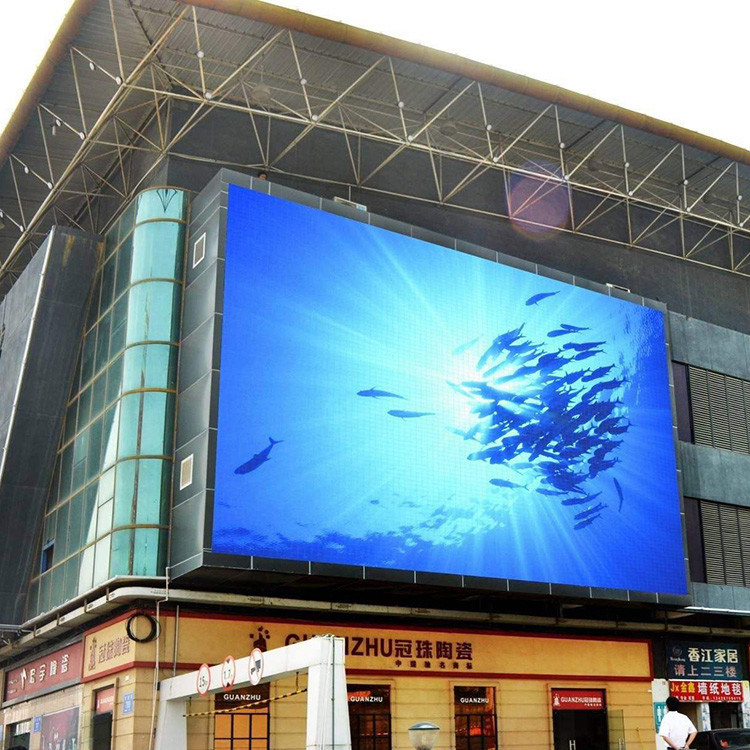

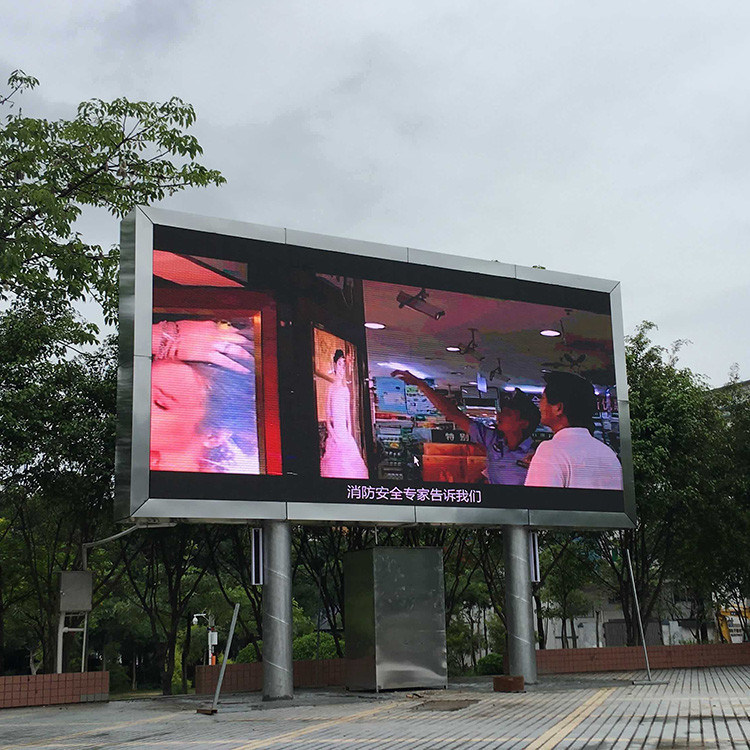

Case Presentation

P8 Outdoor Fixed LED Display Full Color Bulletin Notice Board Publicity Square School Park 0



Packaging And Shipping

P8 Outdoor Fixed LED Display Full Color Bulletin Notice Board Publicity Square School Park 1

Wooden case or flight is available, customer can choose according to their requirement.
