Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Canyi
Certification: CCC FC CE FC CB ROHS
Model Number: Outdoor P10 full color led module
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs / 1 sqm
Price: Negotiation
Packaging Details: Carton，Honeycomb box，Wooden box，Flight Case
Delivery Time: 7-12 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000 Square Meters per Month
Brand Name: |
Outdoor P8 Full Color LED Display |
Pitch: |
8mm |
Module Size: |
320*160mm |
Module Resolution: |
32x16 Dots |
Refresh Rate: |
≥1920HZ |
Density: |
15625 Dots/sqm |
Brightness: |
5500cd/sqm |
Pixel Configuration: |
1R1G1B |
Drive Type: |
1/4 Scan |
Protection Level: |
IP65 |
Brand Name: |
Outdoor P8 Full Color LED Display |
Pitch: |
8mm |
Module Size: |
320*160mm |
Module Resolution: |
32x16 Dots |
Refresh Rate: |
≥1920HZ |
Density: |
15625 Dots/sqm |
Brightness: |
5500cd/sqm |
Pixel Configuration: |
1R1G1B |
Drive Type: |
1/4 Scan |
Protection Level: |
IP65 |
LED outdoor p8 full color display bulletin board publicity square school park
Specification
| Outdoor full color LED display | ||
| Pitch/mm | P8 | P8 |
| Module size/mm | 256*128 | 320*160 |
| Density of pixel/(dots/m2) | 15,625 | 15,625 |
| Pixel composition | 1R1G1B | 1R1G1B |
| Led encapsulation | SMD3535 | SMD3535 |
| Resolution of module | 32*16 | 40*20 |
| Optimum viewing distance | 8-50m | 8-50m |
| View angle / ° | 140H,120V | 140H,120V |
| Size of cabinet/mm | 512*512 | 640*480 |
| Weight of cabinet/kg | 8 | 8 |
| Refresh rate Hz/S | ≥1920 | ≥1920 |
| Luminance of white balance | 5500nits | 5500nits |
| Operation of Environmental Temperature/℃ | Below 40 -above 10 | |
| Working voltage | 110-220 VAC/+/- 10% | |
| Grey scale/color | displaying colors≥16.7M(synchronized) | |
| Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | |
| Input signal | USB,VGA,DVI,HDMI,Audio | |
| Control system | (sending card,receiving cards and Hubs) | |
| Average of non-failure life | >50,00h | |
| Life span | >100,000h | |
| Functionless dot rate | <0.0001 | |
The introdution of outdoor full-color display product:
1) Video play: it can play video programs in video camera, VCD, DVD and LD; it can also play files of different formats, such as AVI, MOV, MPG, DAT and VOB; it has three display formats, namely, VGA+VIDE, Video and VGA;
2)Information release: it can display a variety of computer information, graphs, two-dimensional animation and three-dimensional animation; it has lots of display methods, such as rolling, lead-in, lead-out, up shift, left shift and circulation; font, character size, letter and speed can be set randomly;
3)Network function With the network interface, it can be connected with the Internet to play information on the Internet at the same time; display screens at different places can be centralizedly controlled through Internet according to customers’ requirements, and “VPM+broadband” may be adopted for remote control.
Features:

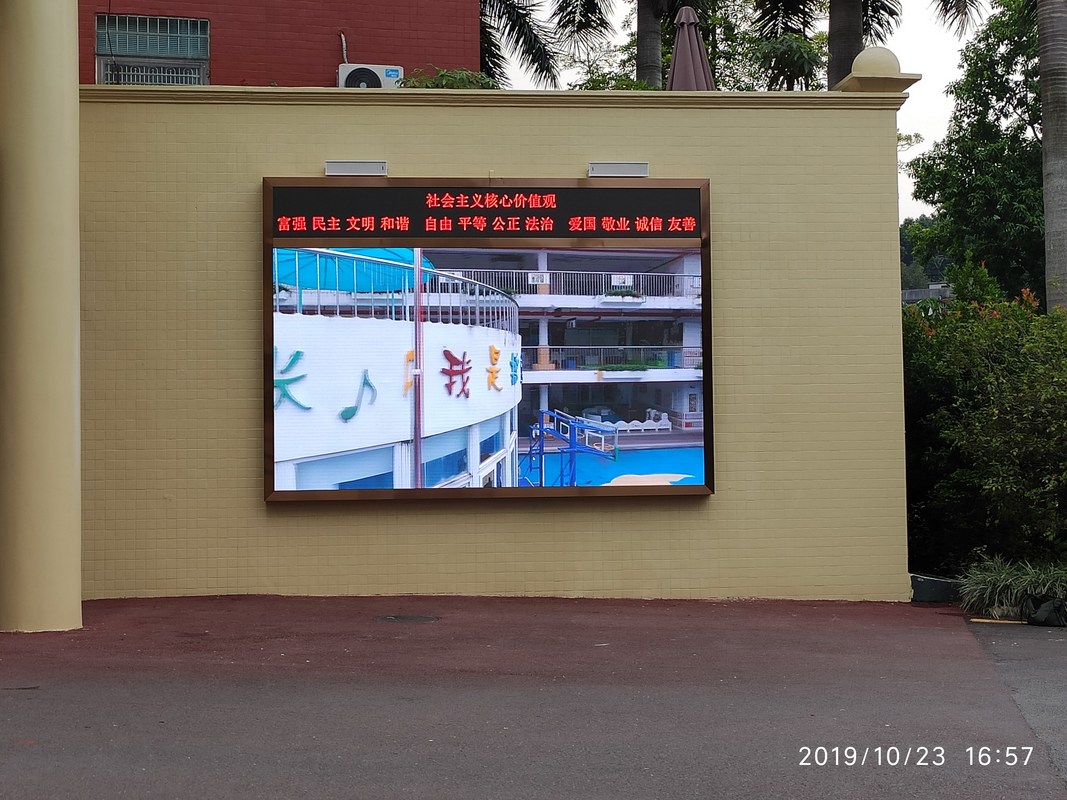

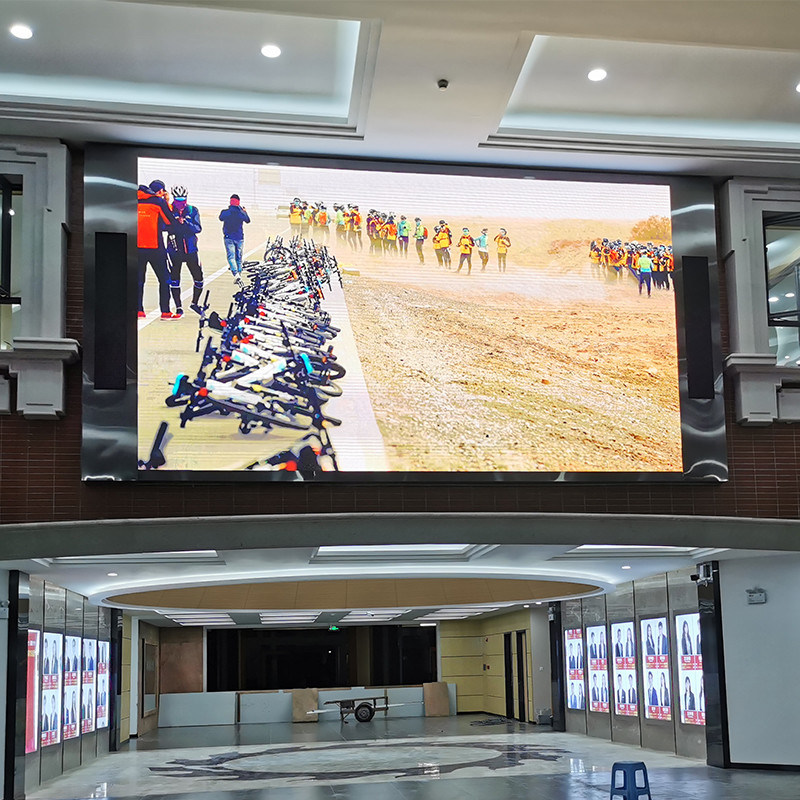

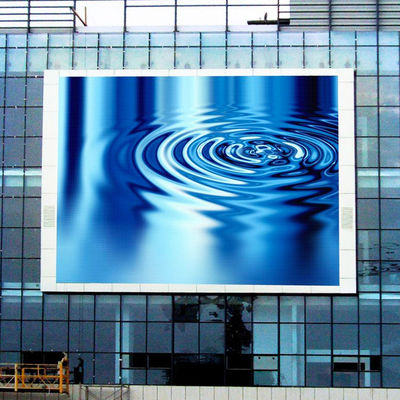

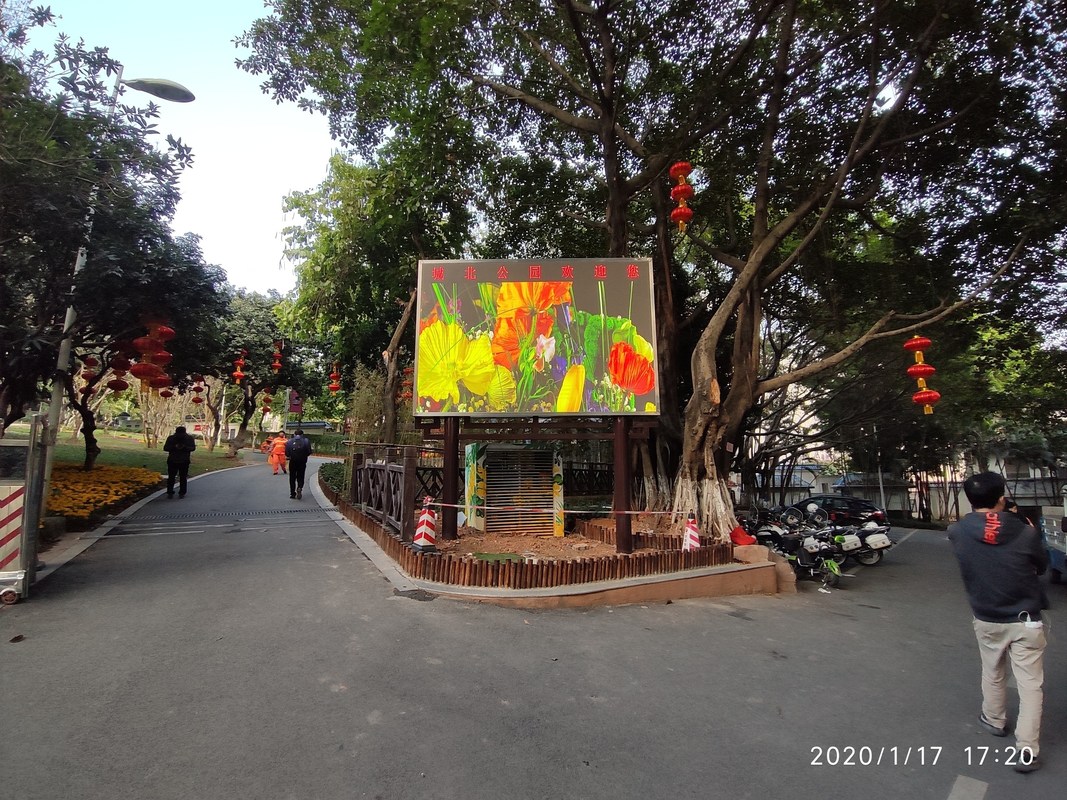

Case Presentation
Packaging And Shipping
Wooden case or flight is available, customer can choose according to their requirement.
FAQ
1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."
2. What is your lead time?
- It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
3. What is your payment term?
- EX factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the shipping method?
- It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
5. How do you make our business long-term and good relationship?
- 1. We keep good quality and competitive price to ensure our customers benefit ;
- 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
