Product Details
Place of Origin: Guangdong, China (Mainland)
Certification: CCC FC CE FC CB ROHS
Model Number: Outdoor P4 full color led module
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs / 1 sqm
Price: Negotiation
Packaging Details: Carton，Honeycomb box，Wooden box，Flight Case
Delivery Time: 7-12 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000 Square Meters per Month
Brand Name: |
Outdoor P4 Full Color LED Display |
Pitch: |
4mm |
Module Size: |
256*128mm |
Module Resolution: |
64x32 Dots |
Density: |
62500 Dots/sqm |
Brightness: |
5500cd/sqm |
Refresh Rate: |
≥3840HZ |
Drive Type: |
1/8 Scan |
Pixel Configuration: |
1R1G1B |
Protection Level: |
IP65 |
Brand Name: |
Outdoor P4 Full Color LED Display |
Pitch: |
4mm |
Module Size: |
256*128mm |
Module Resolution: |
64x32 Dots |
Density: |
62500 Dots/sqm |
Brightness: |
5500cd/sqm |
Refresh Rate: |
≥3840HZ |
Drive Type: |
1/8 Scan |
Pixel Configuration: |
1R1G1B |
Protection Level: |
IP65 |
P4 outdoor full color LED display stage advertising large screen
Specification of LED Display Billboard
| ITEM P4 | Technical parameter | |
| Module | Module Dimension | (W)256mm*128mm(H) |
| Pixel pitch | 4mm | |
| Pixel Density | 62500 dots/㎡ | |
| Pixel configuration | 1R1G1B | |
| LED specification | SMD1921 | |
| Pixel resolution | (W)64*32(H) | |
| resolution | 2048dots | |
| Current | 3.5-4A | |
| Drive type | 1/8 Scanning | |
| Refresh frequency | ≥3840HZ | |
| Brightness | 5500cd/㎡ | |
| Optimum Viewing Distance(m) | 4~20m | |
| Max power consumption | 800W/㎡ | |
| Ave power consumption | 350W/㎡ | |
| Humidity | 10%~95%RH | |
| Working Voltage | 5V | |
| Display Card | DVI Graphics | |
| IP Grade | IP65 | |
The introdution of outdoor full-color display product:
1. With the program editing and playback software, you can edit, add, delete, and modify text, graphics, images, and other information with your mouse. Scheduled content is stored in the control card, and information is automatically displayed based on the program list.
2. Powerful luminous brightness: In the viewing distance, when the sunlight directly hits the screen surface, the display content is still clearly visible.
3. Good viewing angle: whether it is horizontal or vertical, there is a large viewing angle, suitable for the environment with wide horizontal distribution and large height drop.
4. Good effect: using non-linear point-by-point correction technology, the text is clearer and the sense of hierarchy is stronger;
5. Strong reliability: distributed scanning technology and modular design technology are adopted, which has higher reliability and stability;
Features:
1. Anti-interference: special anti-electromagnetic interference function.
2. High precision: seamless splicing by CNC machine.
3. Seamless connection: aluminum alloy die-casting technology, with high-precision CNC machining, so that the accuracy reaches ±0.05mm, to achieve seamless assembly.
4. No noise: The aluminum construction does not require a fan. In combination with a noiseless power supply, the cabinet is completely silent.

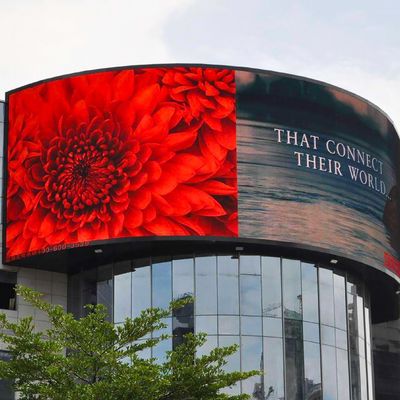

Case Presentation
Packaging And Shipping
Wooden case or flight is available, customer can choose according to their requirement.
