Product Details
Place of Origin: China
Brand Name: CanYi
Certification: CCC CB ROHS
Model Number: CanYi-3.9
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton,Honeycomb box, Wooden box, Flight Case
Delivery Time: 7-12 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000 Square Meters per Month
Panel Size: |
Customize |
Usage Scenario: |
Outdoor Floor |
Brightness: |
High Definition |
Model Numb: |
CanYi-p3.9 |
Size: |
250×250X15mm |
Panel: |
Customize |
Product Name: |
Floor Tile Screen |
Color: |
Full Color |
Humidity: |
7-19 M |
Pixel Configuration: |
1R 1G 1B |
Panel Size: |
Customize |
Usage Scenario: |
Outdoor Floor |
Brightness: |
High Definition |
Model Numb: |
CanYi-p3.9 |
Size: |
250×250X15mm |
Panel: |
Customize |
Product Name: |
Floor Tile Screen |
Color: |
Full Color |
Humidity: |
7-19 M |
Pixel Configuration: |
1R 1G 1B |
Waterproof Treatment P3.9 LED Display Outdoor Radar Interactive Sensor Floor Tile Screen
In the world of visual display technology, immersive interactive experiences are redefining the way we engage with spaces around us. That's why we're excited to introduce the Waterproof P3.9 LED Radar Interactive Sensor Floor Tile Screen, an outdoor display solution that combines robust waterproofing, high-resolution visuals, and innovative radar interaction technology.

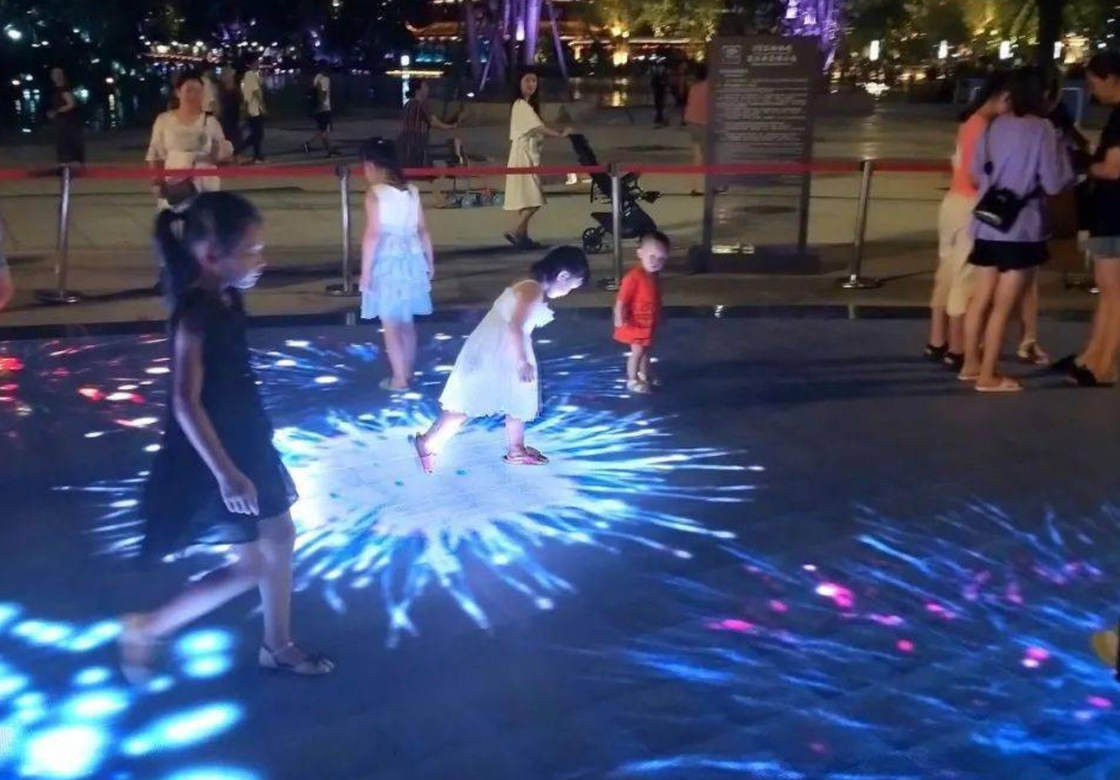

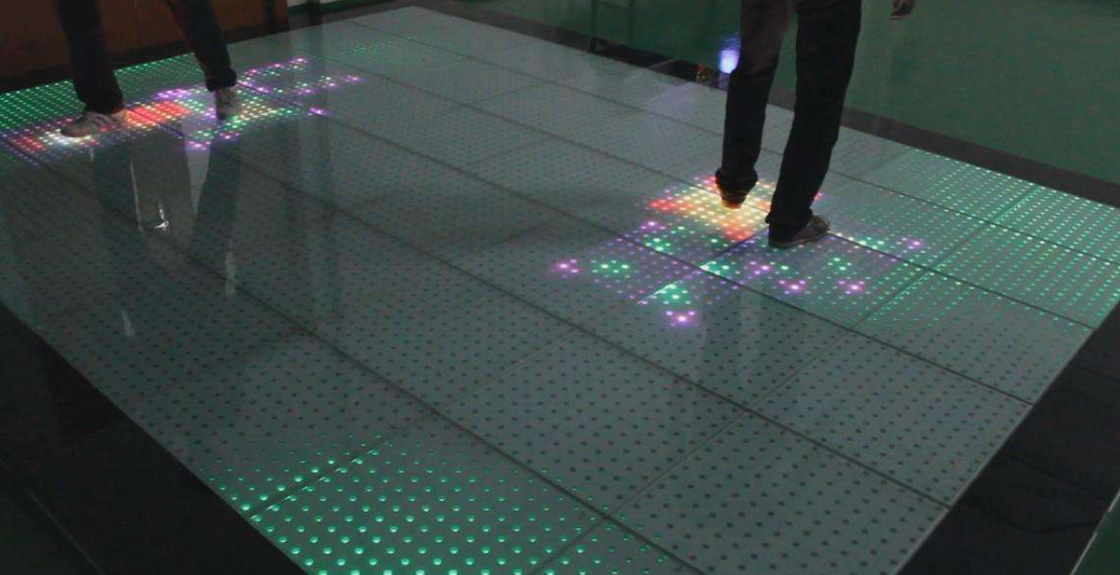

The P3.9 LED Radar Interactive Sensor Floor Tile Screen brings your outdoor space to life with its advanced radar interaction technology. This system detects movement above the screen, triggering changes in the displayed visuals. This could be a ripple effect following a person's steps, or custom visuals reacting to the movement of objects, creating a dynamic and engaging environment that mesmerizes audiences.
Despite its interactive capabilities, this LED floor tile screen doesn't compromise on visual quality. With a P3.9 pixel pitch, it offers high-definition visuals that are sharp, vibrant, and full of detail. Whether it's displaying interactive graphics or playing high-resolution videos, this LED screen ensures a visually impressive performance.
Designed to withstand the outdoors, the P3.9 LED Radar Interactive Sensor Floor Tile Screen has undergone rigorous waterproof treatment. Whether it's a poolside installation, an outdoor exhibition, or a rainy day, this LED floor can handle it all. This robust waterproofing ensures consistent performance and longevity, allowing you to captivate your audience come rain or shine.

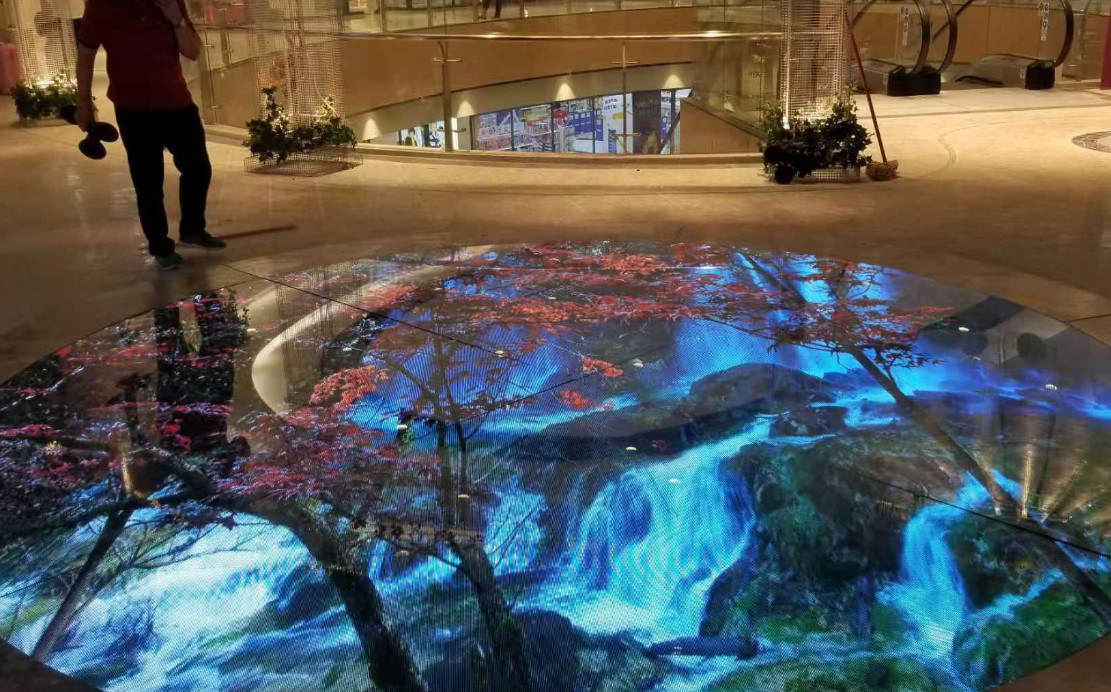

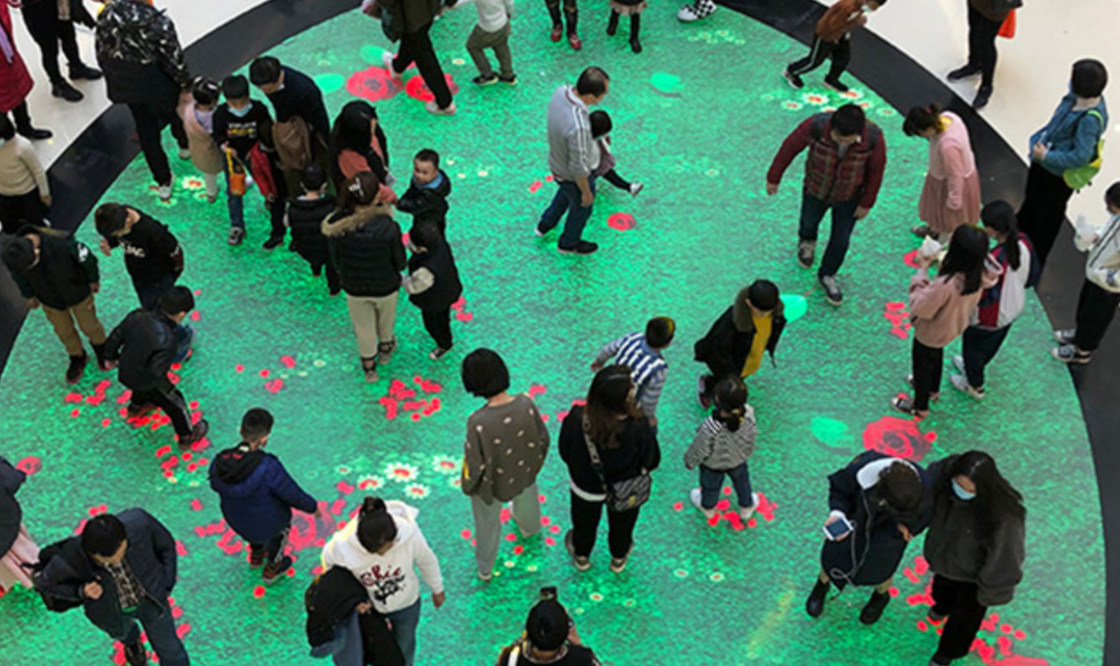

The P3.9 LED Radar Interactive Sensor Floor Tile Screen is more than just an LED display—it's an innovative tool that brings your outdoor space to life. Install it in a public square to engage passersby, set it up at an outdoor event to entertain attendees, or use it in an outdoor retail space to attract and engage customers.
In a world where engagement is key to creating memorable experiences, our P3.9 LED Radar Interactive Sensor Floor Tile Screen stands at the forefront of interactive display technology. It's not just about displaying content—it's about creating an interactive environment where visuals respond to movement, creating an unforgettable experience for your audience.
Ready to transform your outdoor space into an interactive spectacle? Contact us today to learn more about the Waterproof P3.9 LED Radar Interactive Sensor Floor Tile Screen. Let's create unforgettable experiences together.
| P 3.9 Outdoor radar interactive sensor floor tile screen parameter table | ||||
| serial number | name | project | technical indicators | |
| 1 | LED light tube | Lamp Bead Shape | SMD1 921 | |
| 2 | pixel composition | Arrangement | vertical | |
| 3 | pixel tube pitch | 3.9 mm | ||
| 4 | pixel composition | 1R1G1B | ||
| 5 | Primary color composition | Red, green and blue primary colors | ||
| 6 | physical density | 65536 points/㎡ | ||
| 7 |
module Cabinet size |
Module size | 250×250X15 high mm (length X width X thickness) | |
| 8 | Module resolution | 64 wide x 64 high (dots) | ||
| 9 | Cabinet size | Iron box foot installation 1000x500mm | ||
| 10 | out of control point | ≤4/100000 | ||
| 11 | Unit module stitching seam | The size of the splicing seam in the gap between the unit plates is the same, and ≤1mm | ||
| 12 | optimal distance | 7-20m | ||
| 13 | angle of view | Horizontal 120°, Vertical 120° | ||
| 14 | Surface roughness | Maximum error ≤ 1mm | ||
| 15 | Ink color on the surface of the screen | Consistent ink color | ||
| 16 | Uniformity | Uniform brightness of the module | ||
| 17 | use environment | ambient temperature | -20°～50° | |
| 18 | Relative humidity | 25°～95° | ||
| 19 | powered by | Input voltage (AC) | 220V, ±10% | |
| 20 | Earth leakage current | < 3Ma | ||
| twenty one | input frequency | 50/60HZ | ||
| twenty two | average power | 3 5 0W/㎡ | ||
| twenty three | peak power | 800W/㎡ | ||
| 25 | control method | Synchronize with computer VGA (monitor synchronization) | ||
| 26 | Control System | DVI graphics card + full-color control card + optical fiber transmission | ||
| 27 | Input | Computer and other peripherals, VGA, HDMI, DVI, etc. | ||
| 29 | refresh rate | 1920hz | ||
| 30 | grayscale/color | Level 8192 | ||
| 31 | Full screen brightness | 30 00cd/㎡ | ||
| 32 | service life | More than 100000 hours | ||
| 33 | Display content | Video DVD, VCD, TV, image, text, animation, and others. | ||
| 34 | Continuous trouble-free working time | ≥10000 hours | ||
| 35 | interface | Standard Ethemer network interface (gigabit) | ||
| 36 | communication medium, control distance | Multi-mode fiber <500m, single-mode fiber transmission < 30km, category 5 line < 100m | ||
| 37 | protection technology | Waterproof, moisture-proof, dust-proof, anti-corrosion, anti-static, anti-lightning, and over-current/short circuit, over-voltage, under-voltage protection | ||
