Monitoring Security Center Indoor Led Video Wall P1.875 Small Spacing Full Color Display
Product Details:
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | Canyi |
| Certification: | CCC FC CE FC CB ROHS |
| Model Number: | Indoor P1.875 full color led module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs / 1 sqm |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton，Honeycomb box，Wooden box，Flight Case |
| Delivery Time: | 7-12 working days after received your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meters per Month |
|
Detail Information |
|||
| Brand Name: | Indoor P1.875 Full Color LED Display | Pitch: | 1.875mm |
|---|---|---|---|
| Module Size: | 240*240mm | Module Resolution: | 128x128 Dots |
| Density: | 284444 Dots/sqm | Pixel Configuration: | 1R1G1B |
| Refresh Rate: | ≥3840HZ | Brightness: | 550cd/sqm |
| Drive Type: | 1/30 Scan | Protection Level: | IP31 |
| High Light: | Monitoring Indoor Led Video Wall,240*240mm Indoor Led Video Wall,P1.875 Full Color Display |
||
Product Description
Monitoring and security center p1.875 indoor small spacing full color display
Specification
| ITEM P1.875 | Technical parameter | |
| Module | Module Dimension | (W)240mm*240mm(H) |
| Pixel pitch | 1.875mm | |
| Pixel Density | 284444pixels/M2 | |
| Pixel configuration | 1R1G1B | |
| LED specification | SMD1515 | |
| Pixel resolution | (W)128*128(H) | |
| resolution | 16384dots | |
| Current | 3.5-4A | |
| Drive type | 1/30Scanning | |
| Refresh frequency | ≥3840HZ | |
| Brightness | 550cd/ M2 | |
| Optimum Viewing Distance(m) | 2m | |
| Max power consumption | 875W/㎡ | |
| Ave power consumption | 292W/㎡ | |
| Working Temperature | -20℃ to +60℃ | |
| Working Voltage | 5V | |
| Display Card | DVI Graphics | |
| IP Grade | IP31 | |
The introdution of indoor full-color display product:
1. advanced and reasonable system design, stable display effect, convenient installation and maintenance, ultra-high definition and ultra-high resolution.
2. All weather work: vivid color, high refresh frequency, anti-static, dust-proof, good heat dissipation effect and high cost performance.
3. Display mode: left and right movement, up and down movement, left pull screen, right pull screen, middle opening and closing, flashing, instant display and other modes.
4. Using the program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program list. 5. Strong luminous brightness: within the visual distance, when the sun shines directly on the screen surface, the display content is still clearly visible.
6. Good viewing angle: there is a large viewing angle both horizontally and vertically, which is suitable for the environment with wide horizontal distribution and large height drop.
7. Good effect: using nonlinear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;
8. Strong reliability: distributed scanning technology and modular design technology are adopted, with higher reliability and stability;
9. Diversified display modes: support multiple display modes;
10. Convenient operation: the edited content of the computer can be displayed when it is sent to the system control card. The system operation is very convenient.
Features:
2. Indication lights to show status of power and signal status
3. The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
7. Special design for the mask to realize higher contrast and larger viewing angle.
8. Signal backup and power backup.
9. Brightness and chromaticity calibration.

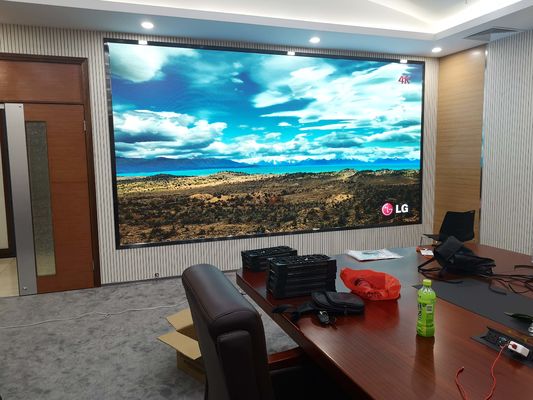

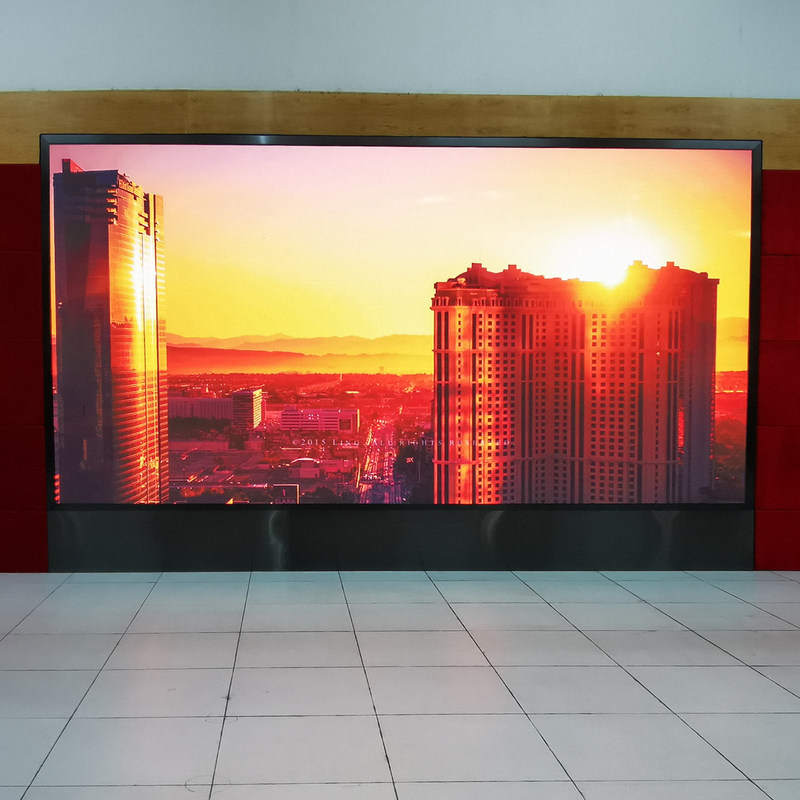

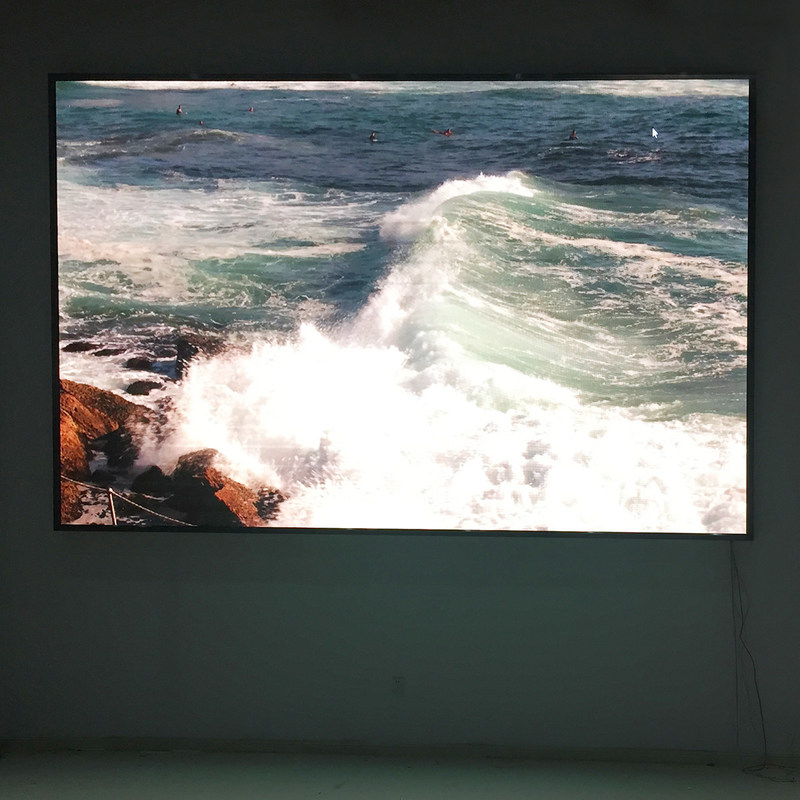

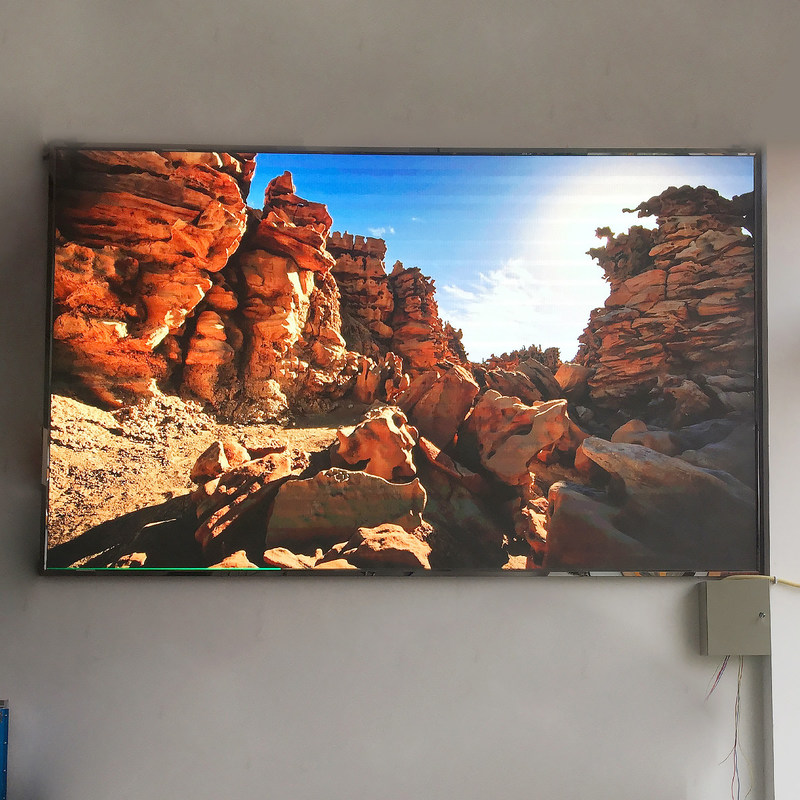

Case Presentation
Packaging And Shipping
Wooden case or flight is available, customer can choose according to their requirement.
FAQ
1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."
2. What is your lead time?
- It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
3. What is your payment term?
- EX factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the shipping method?
- It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
5. How do you make our business long-term and good relationship?
- 1. We keep good quality and competitive price to ensure our customers benefit ;
- 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
