Product Details
Place of Origin: China
Brand Name: CanYi
Certification: CB ROHS
Model Number: CanYi-P3
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs /1 sqm
Price: Negotiation
Packaging Details: Carton,Honeycomb box, Wooden box, Flight Case
Delivery Time: 7-12 working days after received your payment
Payment Terms: T/T Western Union, MoneyGram
Supply Ability: 4000 Square Meters per Month
LED Configuration: |
SMD1515/2525 |
Pixel Spacing: |
2.5/3/4/5/6mm |
Module Size: |
320*160mm |
IP Rating: |
160°/ 140°(HM) |
Gray Scale/bit: |
16 Bit |
Refresh Frequency/Hz: |
1920~3840 Hz |
Operating Power: |
AC 96~242V 50/60Hz |
Operating Temperature: |
-40"C ~+60"C |
Operating Humidity: |
10~90%RH |
LED Configuration: |
SMD1515/2525 |
Pixel Spacing: |
2.5/3/4/5/6mm |
Module Size: |
320*160mm |
IP Rating: |
160°/ 140°(HM) |
Gray Scale/bit: |
16 Bit |
Refresh Frequency/Hz: |
1920~3840 Hz |
Operating Power: |
AC 96~242V 50/60Hz |
Operating Temperature: |
-40"C ~+60"C |
Operating Humidity: |
10~90%RH |

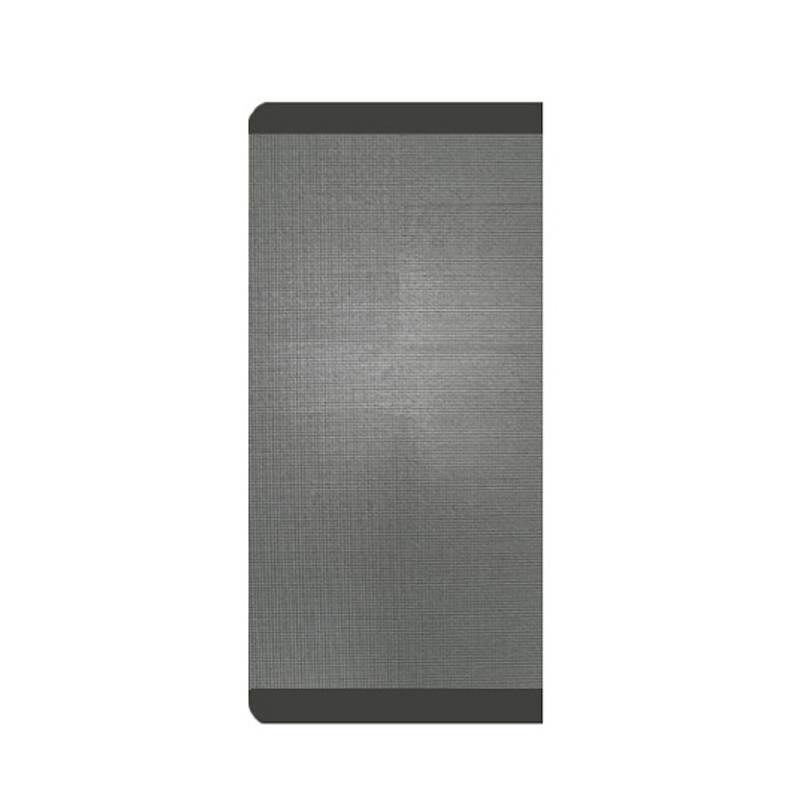

Outdoor P2.5 High Brightness Supermarket Led Street Advertising Led Screen Light Pole Led Display
1.Pole LED displays are usually designed to be weather-resistant and durable, with features such as a rugged enclosure, waterproofing, and temperature control systems to ensure reliable operation in various environmental conditions. They can be remotely managed and updated using a web-based interface or specialized software, allowing operators to easily change the content displayed on the screen.
2.Pole LED displays are becoming increasingly popular due to their versatility, visibility, and ability to attract attention. They can be used to promote products, services, events, and public safety messages, and can be customized to fit the specific needs of different applications and locations.
Pixel spacing | 2.5mm | 3mm | 4mm | 5mm | 6mm |
LED Configuration | SMD1515 | SMD1515 | SMD2525 | SMD2525 | SMD2525 |
PixelDensity/sqm | 160000 dots | 111111dots | 62500dots | 40000dots | 27777dots |
Module Size/mm | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
Cabinet Size | 640 (w) x960(h) | 640 (w) x960(h) | 640 (w) x960(h) | 640 (w) x960(h) | 640 (w) x960(h) |
Cabinet Size | 640(w)x1120(h) | 640(w)x1120(h) | 640(w)x1120(h) | 640(w)x1120(h) | 640(w)x1120(h) |
Cabinet Size | 640(w) x1280(h) | 640(w) x1280(h) | 640(w) x1280(h) | 640(w) x1280(h) | 640(w) x1280(h) |
Cabinet Size | 640 (w)x1440(h) | 640 (w)x1440(h) | 640 (w)x1440(h) | 640 (w)x1440(h) | 640 (w)x1440(h) |
IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
Brightness /sqm | 600-1200 nits | 4000-8000 nits | 4000-8000 nits | 4000-8000 nits | 4000-8000 nits |
View Angle° | 160°/ 140 (HM) | 160°/ 140 (HM) | 160°/ 140 (HM) | 160°/ 140 (HM) | 160°/ 140 (HM) |
Gray Scale/bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
Max.Power ConsumptionW | 860 W/sqm | 786 W/sqm | 840 W/sqm | 750 W/sqm | 790 W/sqm |
Ave.PowerConsumptionW | 260W/sqm | 235W/sqm | 252W/sqm | 252W/sqm | 238 W/sqm |
RefreshFrequency/Hz | 1920~3840Hz | 1920~3840Hz | 1920~3840Hz | 1920~3840Hz | 1920~3840Hz |
OperatingTemperature | -40"C~+60"C | ||||
Operating power | AC96~242V 50/60Hz | ||||
OperatingHumidity | 10~90%RH | ||||
Operating Life | 100000Hours |
